Dry Ultrathin Sectioning Combined With High Pressure Freezing

Freeze-substitution Improves Retention and Visualization of Calcium and Phosphorus Ions Prior to Nucleation of Mineral Crystals Within Osteoblastic Cultures


Cell culture models of bone mineralization: UMR106-01 cells do it faster, are temporally synchronized, and produce more mineral

We have used cultured UMR106-01 osteoblastic cells to investigate the process of bone mineralization. UMR106-01 cells as well as primary calvarial bone cells assemble spherical extracellular supramolecular protein-lipid complexes, termed biomineralization foci (BMF), in which the first crystals of hydroxyapatite mineral are deposited (Midura et al., 2004; Wang et al., 2004). A major difference between these culture models is the speed with which mineralization occurs, ranging from 12–16 days after plating for primary osteoblastic cells to 88 h for UMR106-01 cells.

If mineralization is blocked by omission of phosphate source or by addition of serine protease inhibitor AEBSF, BMF complexes are formed but no mineralization occurs. Interestingly, ultra structural studies have shown that prior to mineralization BMF contain numerous membrane limited vesicles ranging in size from 50 nm to 2 microns in diameter. However, the first mineral crystals are not detected until 78 h after plating of UMR106-01 cells and are localized within spherical sites presumed to be vesicles.

Specifically, confocal Raman spectral analyses have shown that mineralization within BMF is a progressive, multi-step process occurring simultaneously in all BMF within a culture flask (Wang et al., 2009). Importantly, several protein spectral changes are detectable within each BMF prior to the deposition of poorly crystalline hydroxyapatite and when mineralization was blocked, these changes did not occur. Thus, mineralization within BMF is a temporally synchronized process. However, understanding the biochemical mechanism of mineralization requires a detailed appreciation of calcium and phosphorus ion handling prior to crystal nucleation within BMF.

Solubility of calcium and phosphorus along with current aqueous methodology precludes ultrastructural analysis of initial vesicular events in biomineralization?

Previous work has proposed that cartilage and/or bone mineralization utilizes either a single vesicle population enriched in both calcium and phosphorus, or, two vesicle populations separately enriched in calcium or phosphorus (Figure 1) (Anderson, 1967; Bonucci, 1967; Arsenault and Ottensmeyer, 1984). In order to clarify this issue, the solubility of these ions necessitates the use of additional methods such as high pressure freezing and freeze substitution to avoid loss during specimen fixation, embedding, and sectioning. Since most prior studies have not consistently avoided water during specimen processing, the true impact of pseudo non-aqueous processing on the process of osteoblast-mediated mineralization is difficult to assess.

The goal of our study was to use the synchronized UMR106-01 culture model to devise and validate a pseudo nonaqueous processing method to image the distribution of calcium and phosphorus ions within BMF immediately prior to nucleation of the fi rst hydroxyapatite crystals therein (Figure 1). We believe this method should also be applicable to investigations of temporal changes in calcium ion distributions in other cells such as muscle.

Fig. 1: The single and dual vesicle models of extracellular mineralization. Upper panel, single matrix vesicle model. Calcium and phosphorus ions are progressively concentrated within a single population of matrix vesicles through the proposed actions of Ca+2-pumping ATPase, Na+-phosphate co-transporter, and phosphatases acting on phospholipids. Once Ca+2 and phosphate ions reach a threshold concentration (yellow), nucleation of initial mineral crystals occurs leading to breakage of the vesicle and release of crystals which can propagate additional crystals within the surrounding extracellular collagenous matrix. Lower panel, dual vesicle model. Calcium and phosphorus are progressively concentrated within two different populations of vesicles which biochemically display distinct functional distributions including Ca+2 pumping ATPase and Na+-phosphate co-transporter activities, respectively. Subsequently, these calcium and phosphate enriched vesicle populations fuse and nucleate mineral crystals leading to breakage of the vesicle and release of crystals which can propagate additional crystals within the surrounding extracellular collagenous matrix.

Calcium and phosphorus are lost from high pressure frozen, freeze-substituted or conventionally fixed samples

Use of high pressure freezing and freeze-substitution is not sufficient to retain labile calcium and phosphorus in mineralizing osteoblastic cell cultures

Calcium and phosphorus can be lost from samples either after high pressure freezing and freeze-substitution or during conventional fixation. To evaluate the effectiveness of our pseudo non-aqueous method, we chose to stop the cultures at 76 h, twelve hours after adding the ß-glycerol phosphate mineralization stimulus, but 2 h before the appearance of the first crystals of mineral within BMF (Midura et al., 2004; Wang et al., 2009). Some cultures were randomly chosen to be processed for conventional fixation (Figure 2) while others were processed by high pressure freezing (Leica EM PACT) and freeze-substitution (Figure 3). Comparison of these paired cultures support several conclusions. Large areas contain a somewhat homogeneous particulate organic matrix after conventional fixation. These areas seem to exclude membrane limited vesicles from their volume. In contrast, high pressure frozen cultures contain numerous almost "white" extracellular areas, roughly 0.5–1 μm in diameter, within BMF (arrows, Figure 3).

In higher power views, it is evident that despite the low contrast these "white" regions do possess an underlying detail which represents a range of irregularly shaped spherical bodies from about 50 to 800 nanometers in diameter (not shown). However, the presence of these “white” areas raised immediate concerns regarding the loss of inorganic or organic substances. In particular, when compared with similar BMF regions from paired, conventionally fixed cultures (Figure 2), we hypothesized that "white" spots represented materials which were preferentially retained by high pressure freezing but which were subsequently lost upon further processing.

Fig. 2: Appearance of BMF in mineralizing osteoblastic culture after conventional chemical fixation and wet sectioning. UMR106-01 cells were cultured for 12 h in the presence of ß-glycerol phosphate. Arrowhead defines the outlines of an extracellular BMF enriched in a somewhat homogeneous particulate organic matrix.<br>
Fig. 3: High-pressure frozen, freeze-substituted osteoblastic cultures contain BMF with translucent spots (arrow) which are poorly contrasted extracellular matrix regions. When compared with analogous samples subjected to dry sectioning, the translucent spots appear black (see Figure 4).

Calcium and phosphorus retention is improved in dry sectioned high pressure frozen, freeze-substituted cultures

Side-by-side comparison shows dry sectioning in combination with high-pressure freezing and freeze-substitution is required to observe extracellular vesicle populations enriched in calcium and phosphorus within mineralizing osteoblastic cultures

Notably, subsequent electron spectroscopic imaging of calcium and phosphorus was not possible in either conventionally fixed nor in freeze-substituted samples which were sectioned on water regardless of whether specimens were post-stained or not (results not shown). We therefore substituted dry sectioning for wet sectioning of high pressure frozen, freeze substituted cultures. Calcium and phosphorus retention is improved in dry sectioned high pressure frozen, freeze-substituted cultures. It is clear that substitution of dry sectioning leads to a dramatic increase in retention of calcium and phosphorus within biomineralization foci [compare Figures 3 (wet sectioning) and 4 (dry sectioning)].

Focal 0.5–1 μm diameter areas which appeared as “white” spots in Figure 3 after wet sectioning, now appear dark (Figure 4A) in the zero loss energy image. The fact that UMR106-01 cultures mineralize in a reproducible, temporally synchronous manner facilitates these direct comparisons among different cultures (Wang et al., 2009).In addition, electron spectroscopic imaging demonstrates that the dark appearing areas are enriched in calcium and phosphorus (compare Figures 4A, B, and C). Finally, as shown in the overlay image in Figure 4D, the calcium (red) and phosphorus (green) signals largely overlap each other in the 76 h cultures as shown by the presence of yellow. Since other studies have shown that 76 h UMR106-01 cultures do not contain detectable mineral crystals (Huffman et al., 2007; Wang et al., 2009), the enriched contents of calcium and phosphorus observed here could represent amorphous calcium phosphate (Driessens et al., 1978) and/or labile organic forms of phosphorus such as polyphosphates (Omelon et al., 2009).

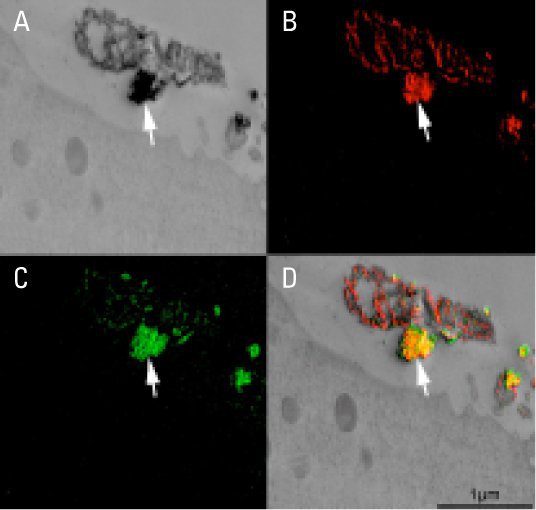

Fig. 4: After pseudo non-aqueous processing, mineralized BMF were enriched in calcium and phosphorus. Cells were grown identically to those in Figures 2 and 3. A: Zero loss energy image depicting dark appearing vesicle. B: Electron spectroscopic imaging of calcium signal. C: Electron spectroscopic imaging of phosphorus. D: Superimposed images of the views in A–C.

Importantly, a functional role for the observed enriched focal contents of calcium and phosphorus in mineralization is supported by analyses of un-mineralized control cultures. When a similar high pressure freezing, freeze substitution, and dry sectioning approach was applied to un-mineralized UMR106-01 cultures, few dark (calcium and/or phosphorus enriched) vesicles or particles were detected (not shown). Finally, an additional advantage to use of the oscillating knife was that it reduced compression during sectioning and reduced wrinkling of resultant sections.

Summary

In summary, our results show that high pressure freezing and pseudo non-aqueous processing are required to detect extracellular sites of early calcium and phosphorus enrichment in mineralizing osteoblastic cultures. Use of dry sectioning proved to be a critical step in the preservation of calcium and phosphorus. Also, electron spectroscopic imaging demonstrated that darkly stained vesicles within extracellular biomineralization foci are enriched in calcium and phosphorus prior to the detection of crystalline mineral (Wang et al., 2009). We now plan to use this method to determine if osteoblastic cells in vitro and in vivo utilize a single or dual vesicle mineralization mechanism (Gorski et al., 2004; Midura et al., 2009).

References cited

  1. Anderson HC: Electron microscopic studies of induced cartilage development and calcification. J Cell Biol 35 (1967) 81–101.
  2. Bonucci E: Fine structure of early cartilage calcification. J Ultrastruct Res 20 (1967) 33–50.
  3. Driessens FC, van Dijk JW, Borggreven JM: Biological calcium phosphates and their role in the physiology of bone and dental tissues. 1. Composition and solubility of calcium phosphates. Calcif Tissue Res 26 (1978) 127–137.
  4. Gorski JP, Wang A, Lovitch D, Law D, Powell K, Midura RJ:Extracellular bone acidic glycoprotein-75 defines condensed mesenchyme regions to be mineralized and localizes with bone sialoprotein during intramembranous bone formation. J Biol Chem 279 (2004) 25455–25463.
  5. Huffman NT., Keightley JA , Chaoying C, Midura RJ, Lovitch D, Veno PA, Dallas SL,  Gorski JP: Association of specific proteolytic processing of bone sialoprotein and bone acidic glycoprotein-75 with mineralization within biomineralization foci. J Biol Chem 282 (2007) 26002–26013.
  6. Midura, RJ, Wang A, Lovitch D, Law D, Powell K, Gorski JP: Bone acidic glycoprotein-75 delineates the extracellular sites of future bone sialoprotein accumulation and apatite nucleation in osteoblastic cultures. J Biol Chem 279 (2004) 25464–25473.
  7. Midura RJ, Vasanii A, Su X, Midura SB, Gorski JP: Isolation of calcospherulites from the mineralization front of bone. Cells Tissues Organs 189 (2009) 75–79.
  8. Omelon S,Georgiou J, Henneman ZJ, Wise LM, Sukhu B, Hunt T, Wynnyckyj C, Holmyard D, Bielecki R, Grynpas  MD: Control of vertebrate skeletal mineralization by polyphosphates. PLoS One 4 (2009) e5634.
  9. Studer D. Hillman-Marti T, Huffman NT, Gorski JP: Eliminating Exposure to Aqueous Solvents Is Necessary for the Early Detection and Ultrastructural Elemental Analysis of Sites of Calcium and Phosphorus Enrichment in Mineralizing UMR106-01 Osteoblastic Cultures. Cells Tissues Organs May 30 (2011) [Epub ahead of print].
  10. Wang C, Wang Y, Huffman NT, Cui C, Yao X, Midura S, Midura RJ, Gorski JP: Confocal laser Raman microspectroscopy of biomineralization foci in UMR 106 osteoblastic cultures reveals temporally synchronized protein changes preceding and accompanying mineral crystal deposition. J Biol Chem 284 (2009) 7100–7113.
