Tobacco Leaf - Critical Point Drying Protocol for SEM

Application Note for Leica EM CPD300 - Life Science Research

Tobacco (Nicotiana tabacum)
Critical point drying of tobacco leafs with subsequent platinum coating and SEM analysis.

Sample Holder: Samples were placed into the filter discs and porous pots holder.


Topics & Tags

Fixation and Dehydration:

2% Paraformaldehyde, 2.5% Glutaraldehyde, 0.1M Cacodylate Buffer, pH 7.32 h
0.1M Sodium Cacodylate Buffer, pH 7.32x10 min.
1% aqueous OsO41-2 h
Destilled water3x10 min.
Ethanol series: 50%, 70%, 95%, 100%3x10 min.

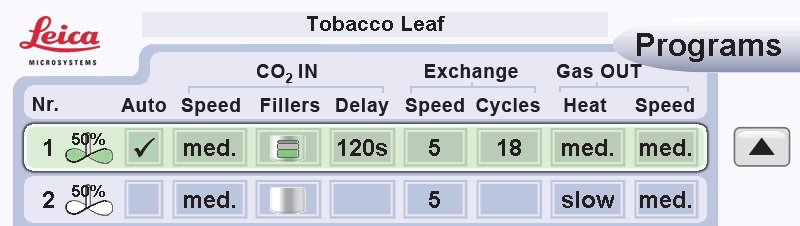

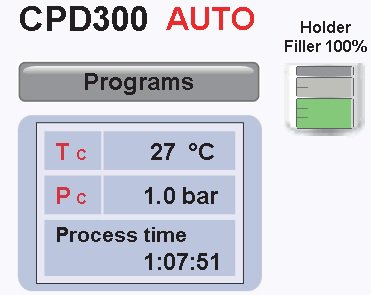

Leica EM CPD300 auto Program:

Platinum: 15-20 nm
