Battery Manufacturing Microscope Solutions
Do you need to ensure reliable and efficient quality control for battery production? Leica Microsystems has the right microscope solution for your specific application needs in inspection, quality assurance (QA), failure analysis, and R&D.
Optimize your workflow efficiency for electrode manufacturing, cell assembly and finishing.
From sample preparation right through to visual inspection, Leica solutions can help you achieve cost-effective production and develop safe, efficient, and environmentally friendly batteries.
Areas of Expertise
Battery electrode inspection
Image of a battery electrode showing a hole defect.
Inspection of electrodes for critical defects, such as impurities, blow holes in the coating, and edge waviness, are an important aspect of ensuring battery safety and reliability.
Burr detection for batteries

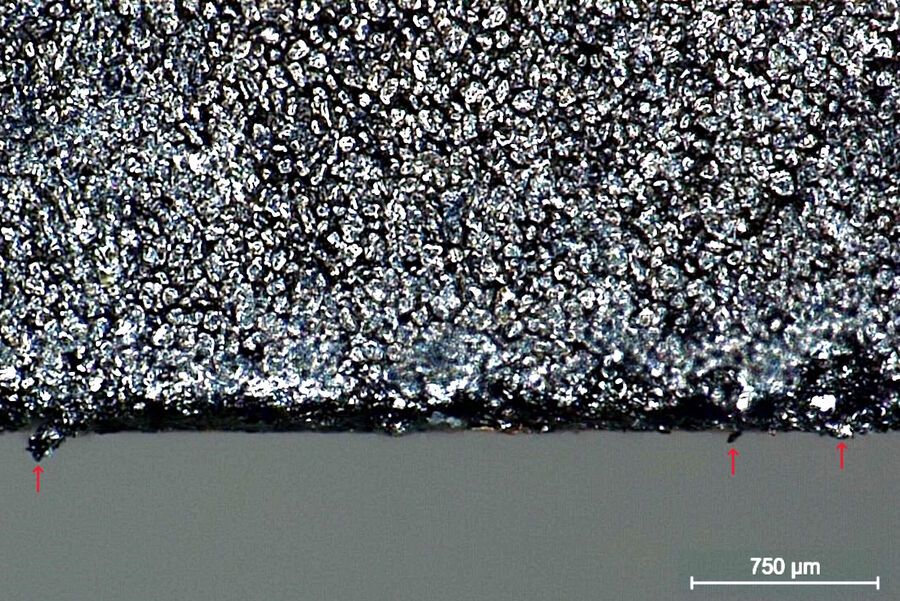

Image of a battery electrode showing burrs at its edges.
Fast and accurate identification of burrs is important during battery production to ensure quality and performance, minimizing risk of failure, reducing waste, and achieving efficient and cost-effective production.
Cross-section analysis of battery components

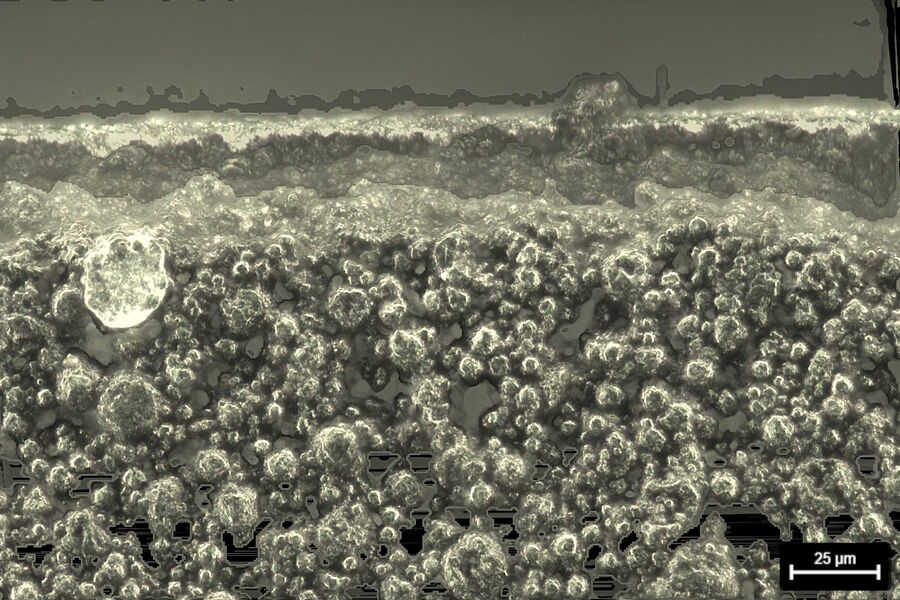

Image of a battery electrode cross section.
The development and production of high-performance battery systems requires their component’s internal structures to be examined. Such an analysis requires precise and efficient preparation of sample cross sections.
Cleanliness analysis for battery production

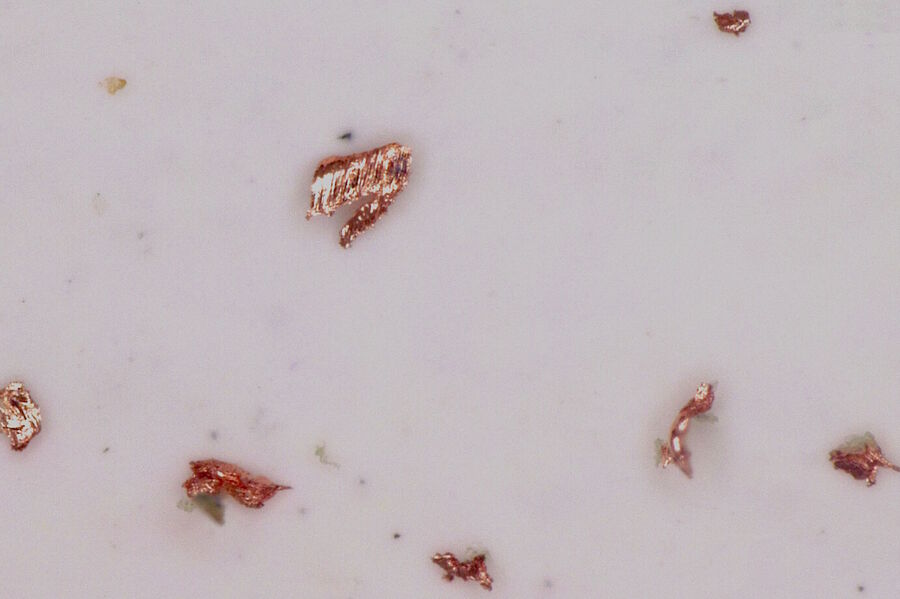

Image of particles on a filter during cleanliness analysis.
Particle contamination during battery production can cause short circuits and overheating which can lead to poor battery performance, short lifetimes, or even failure. Particle detection and elimination plays an essential role in quality control during component fabrication and assembly.
SOLUTIONS FOR BATTERY MANUFACTURING

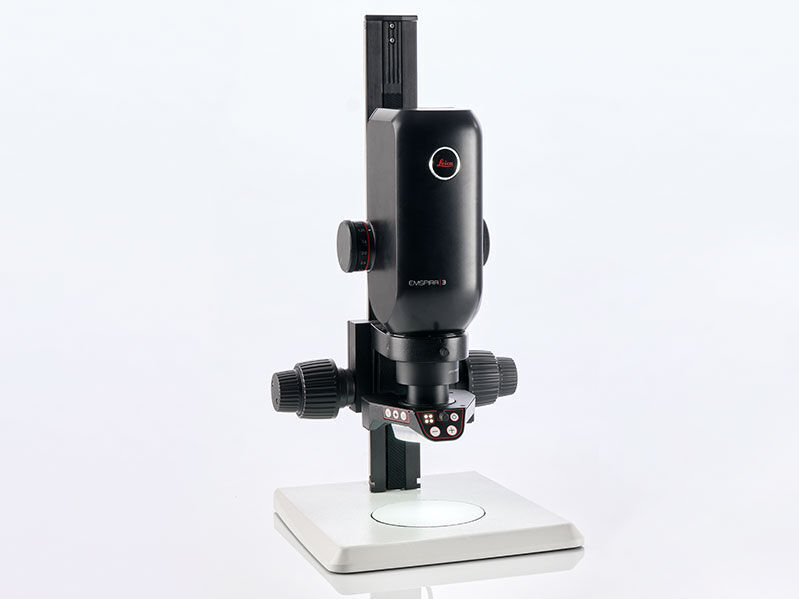

Emspira 3 digital microscope:
An all-in-one system for comprehensive visual inspection. Save time when meeting demanding throughput targets and inspecting diverse samples. For efficient decision making, benefit from secure storage and easy sharing of documentation. With a robust design, confidently and reliably focus on your work.
Application: Battery electrode inspection

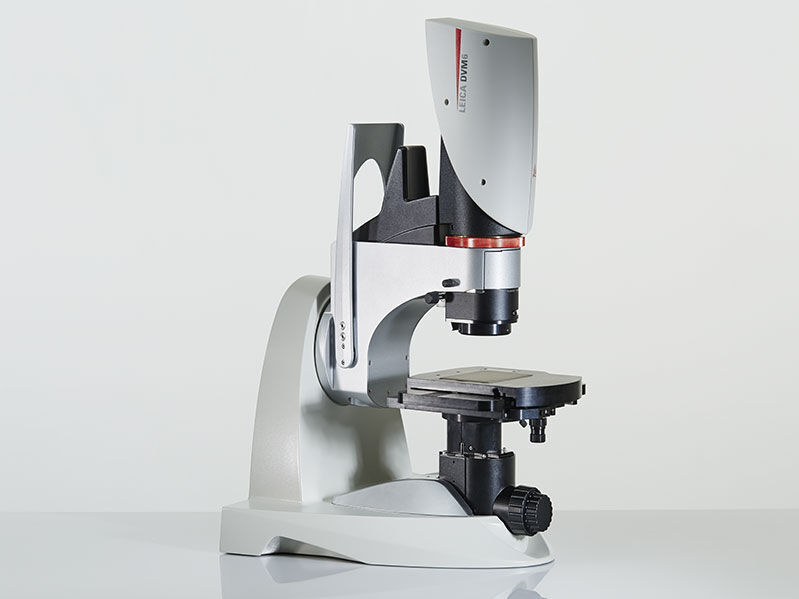

DVM6 digital microscope:
A versatile solution that helps you gain insights during sample investigations, stay focused on your work thanks to a convenient operation, and improve reliability of results with reproducible imaging conditions.
Application: Battery burr detection and electrode inspection

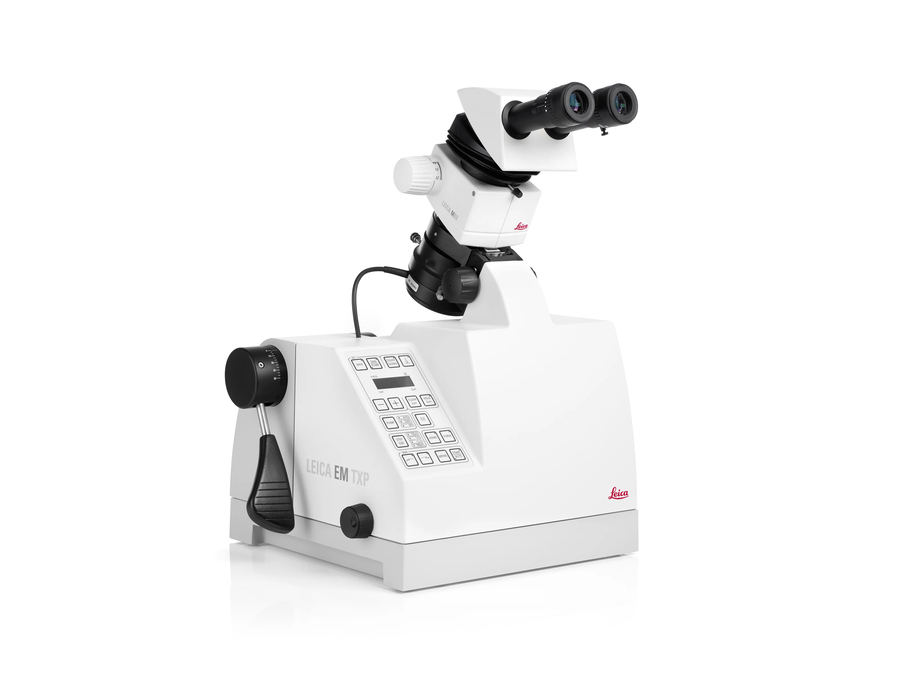

EM TXP target preparation device:
For milling, sawing, grinding, and polishing of samples prior to examination by SEM, TEM, and LM techniques. The integrated stereo microscope allows pinpointing and easy preparation of barely visible targets.
Application: Cross-section analysis of battery components

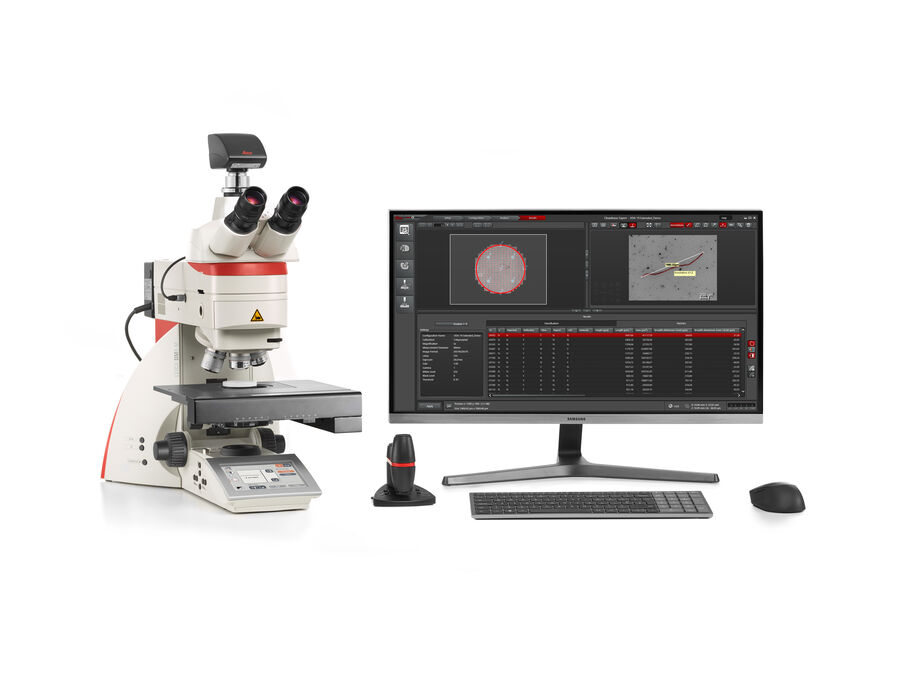

DM6 M microscope and Cleanliness Expert analysis software:
For particle sizes down to 5 μm, the DM6 M offers fully automated recognition of metallic and non-metallic particles and fibers as well as measurement of particles in X, Y, and Z.
Application: Cleanliness analysis for battery production
