Metallography Solutions from Leica Microsystems
Reproducible microscopy
- Recall the exact same imaging settings with absolute accuracy.
- Instantly reproduce imaging parameters and settings with the unique “Store and Recall” software functions.
- Get brilliant imaging results every time with the microscopes that don’t forget.
Image, measure, and analyze features. Reveal hidden details of your samples with High-definition Darkfield illumination.
Learn about Software with Expert Knowledge: LAS X Materials Science Modules

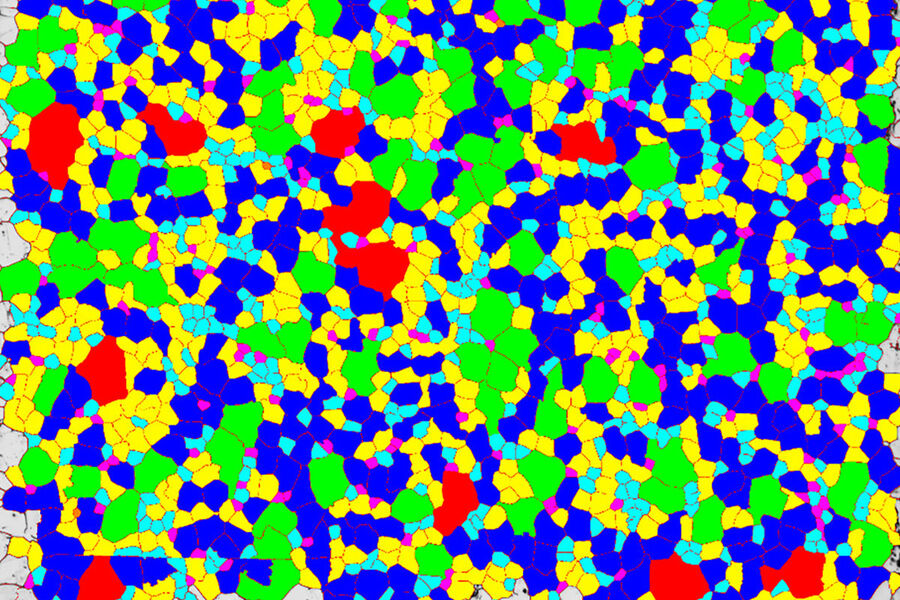

LAS X Grain Expert Software: Superior accuracy and reproducibility in grain analysis
LAS X Grain Expert module provides an environment allowing users to rapidly perform structural analysis of steel and other materials. A multitude of structures and sample types can be studied using highly accurate edge detection algorithms.

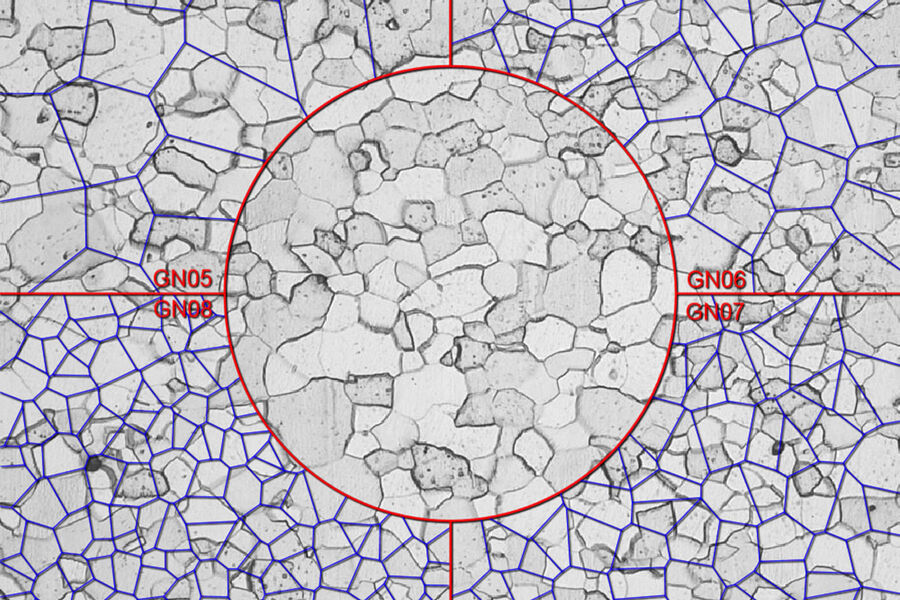

This software module also includes traditional stereological methods, such as the Heyn lineal intercept, Jeffries planimetric, and Abrams 3-Circle procedure. These methods are applied automatically, resulting in the direct calculation of grain size. Whereas traditional stereological methods suffer from a 1-dimensional approach to approximate grain size, LAS X Grain Expert applies specific 2-dimensional algorithms to directly measure the grain area. This exceptional approach results in superior accuracy compared to traditional, non-digital methods.
LAS X Grain Expert covers multiple international standards for metallographic grain size analysis, such as ASTM E112, DIN/EN/ISO 643, GOST 5639 and JIS G0551. Derived or related standards, e.g., ASTM E1382 or ASTM E930, which merely describe different technical approaches for grain size analysis are covered within the main standards noted above.

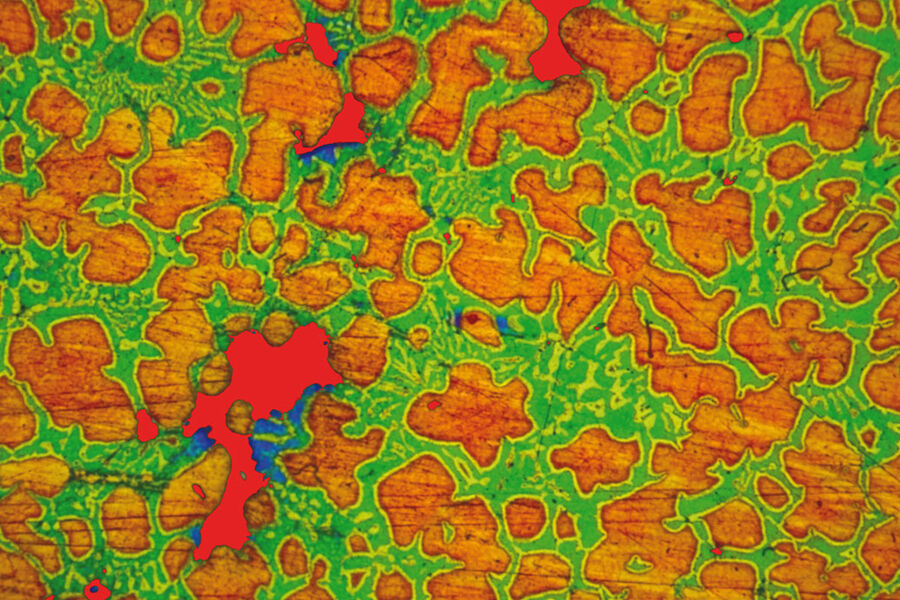

LAS X Phase Expert Software: Improve detection accuracy by up to 250 times
LAS X Phase Expert module enables the advanced analysis of multiple phases and microstructure components. It automatically and precisely measures the area percentage of metals, minerals, and other materials.
Using high bit-depth or HDR images, highly accurate detection algorithms allow for the investigation of phases which show faint differences in the acquired images. Where in traditional images the bit-depth detection resolution is limited to 256 intensity levels, LAS X Phase Expert allows an improvement in detection accuracy of more than 250 times.
Results are typically calculated as the percentage of individual phases in the observed microstructure. Beyond traditional phase analysis, the software also provides additional object measurement capabilities and evaluation of a wide variety of other geometrical and morphological parameters as well.
LAS X 2D Analysis Software: Sample classification trainable for your specific needs
The LAS X 2D Analysis module was specifically developed to combine accurate object and area measurements with high flexibility to tailor automated analyses to the user’s particular needs. Various objects and features, such as particles, powders, fibers, voids, porosity, and more, can be analyzed according to geometrical and morphological properties, as well as physical properties, like intensity or color.
The identified objects can be classified based on the parameters available in the LAS X 2D Analysis module. Beyond traditional methods, the software also provides a programmable classifier which allows you to create customized parameters. Simply select a few objects of one or more classes with a click of the mouse and the 2D Analysis module can determine automatically all relevant parameters. Once the specific classifiers are set up, user interaction for future analysis is reduced to a minimum.
The LAS X Multichannel Analysis option allows the detection and classification of objects in parallel and makes available a series of logical operators (AND, OR, XOR, etc.) that allow you to combine individual results to obtain multiple combinations of measurements.
This combined set of powerful analysis features makes the LAS X 2D Analysis/Multichannel Analysis modules the ideal tool for many jobs performed in quality control and advanced research.
LAS X Cast Iron Expert Software: Structural analysis of nodular/ductile or compacted cast iron
LAS X Cast Iron Expert module provides an environment for the quick analysis of graphite microstructures in cast iron, such as ductile/nodular or compacted.
Unlike traditional comparison based approaches, LAS X Cast Iron Expert determines type, shape, size and distribution of graphite nodules automatically. Analyses performed with the module conform to procedures described in various international standards. Results obtained can also be expressed according to these same international standards (ASTM A247, ISO 945-2, JIS G 5502).
Besides the analysis of graphite nodules on etched samples, the software also assists in determining the ferrite/pearlite ratio. Utilizing high bit depth or HDR images and advanced contrast methods, the unique detection algorithms of the LAS X Cast Iron Expert module allow for the rapid analysis of graphite, ferrite and pearlite in parallel. This software can also be used to assess a wide variety of other geometrical and morphological parameters.

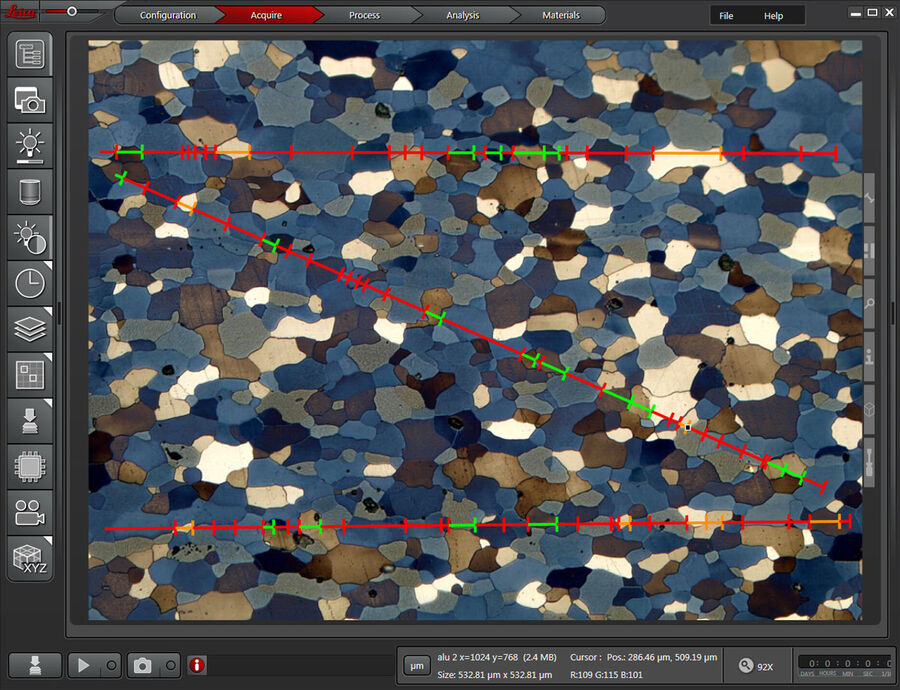

LAS X Metallography Toolbox: Flexible-to-use tools for stereology-based structural analysis
The add-on, LAS X Metallography Toolbox, enhances the capabilities of the LAS X 2D Measurement module making it a versatile toolbox for stereological analysis of metallographic/metallurgical samples. In addition, it can be turned into a dedicated tool for a wide variety of applications in metallography and materials science.
It simplifies the manual tasks involved when defining parameters for calibrated measurements, such as baseline lengths, lineal intercepts, point counting, segments of circles, or multi-layer coating thickness.
Both assigning individual classes to measurements and comparative analysis of the related parameters are made possible. Thus, component and phase specific results can be generated.

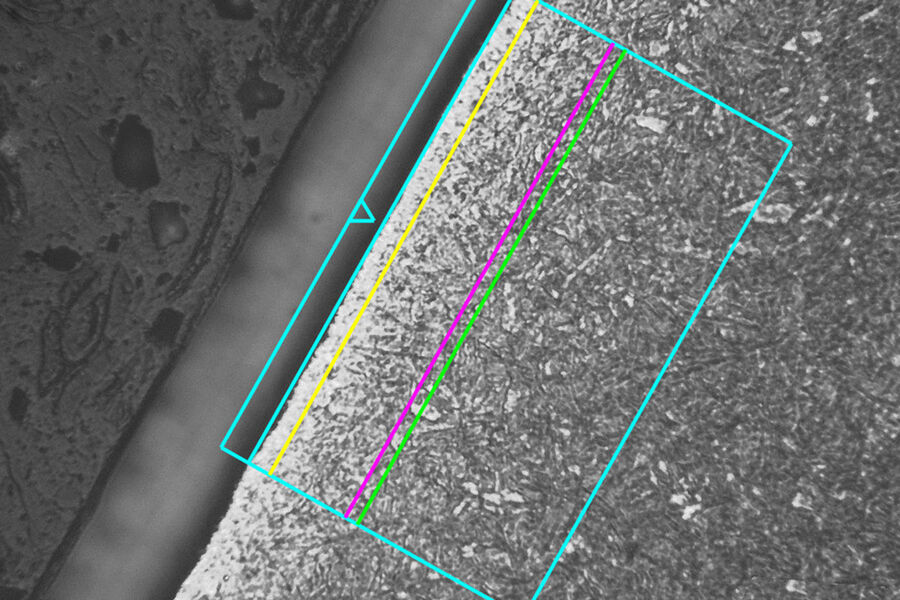

LAS X Decarburization Expert Module: Structural analysis of surface carbon depletion in heat treated steel
LAS X Decarburization Expert module is a dedicated environment for the analysis of carbon depletion due to tempering in air or thermal hardening of steel. Carbon depletion - or decarburization - affects the properties and hence the quality of the tempered steel. LAS X Decarburization Expert analyses for the functional decarburization depth, the depth at which the original material properties are unaffected.
A selection of advanced image pre-processing filters can additionally aid the user to overcome artifacts originating from sample preparation and etching. Advanced analysis algorithms automatically correlate the parameters provided for the material and product specifications and calculate the final result. The software works completely automatically but the operator constantly has the ability to interact with it.
LAS X Decarburization Expert software covers multiple international standards used for determining the decarburization depth of steel (ASTM 1077, DIN 50192, ISO/DIN/EN 3887, JIS G0558, etc.).
See more of your sample
- Get 4 times the field of view
- Change between different magnifications – 0.7x, 0.5x,10x, 20x, 50x, 100x – and illuminate your sample from different angles
- Increase sample throughput with the 3-position focus drive
See more details
- Ultra-Contrast 3D illumination allows you to illuminate your sample from different angles, obtain additional information on the surface structure, and achieve improved contrast to
- See more details of your sample in less time With the Macro objective offered exclusively by Leica
Speed up your workflow
- Change 4 times faster between samples, with a large working space to easily place even huge and heavy samples that weight up to 30 kg
Modular and Upgradable
- Choose between manual, coded, or automated functions
- Tailor the system to fit your budget, application needs and preferences by the modular design
- A full range of contrast modes for all your applications needs
