| Article Number | 11506352 |
|---|---|
| Correction Ring (CORR) | CORR |
| Coverglass | With |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 0.65 |
| Immersion | Water |
| Iris Diaphragm | Without |
| Magnification | 40⨉ |
| Contrasting Methodes | TL-BF, FLUO |
| Numerical Aperture | 1.1 |
| Objective Thread | M25 |
| Objective Type | PLAN APO |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | MP, Waterdispenser |
| Transmission | IR (up to 1300nm) |

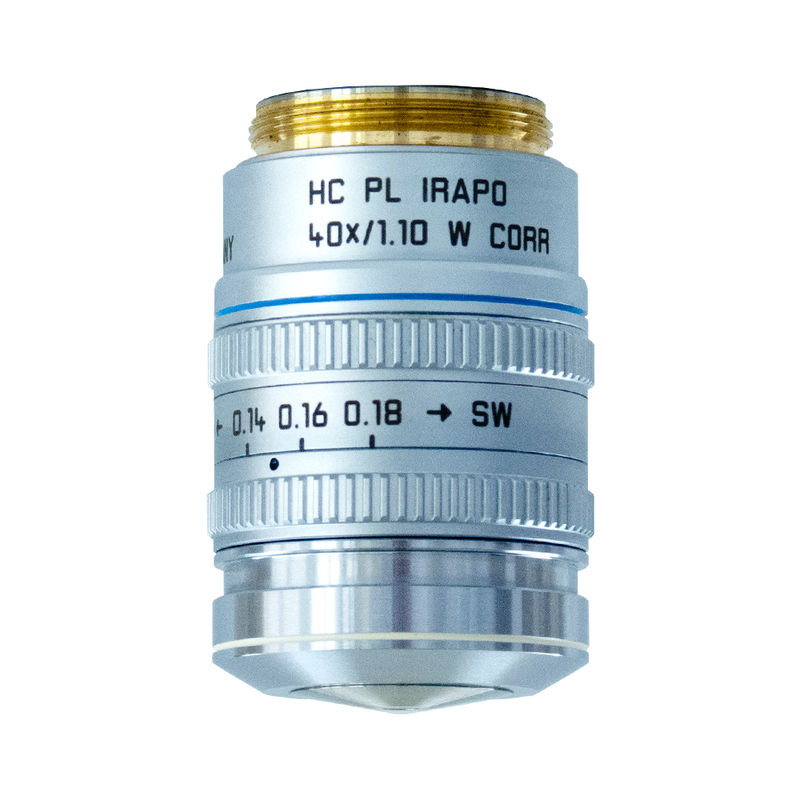

Figure

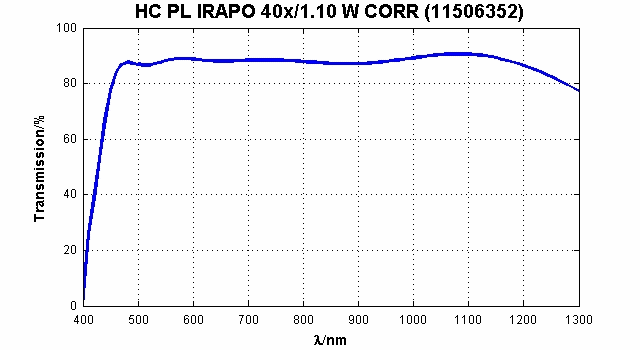

Transmission Curve

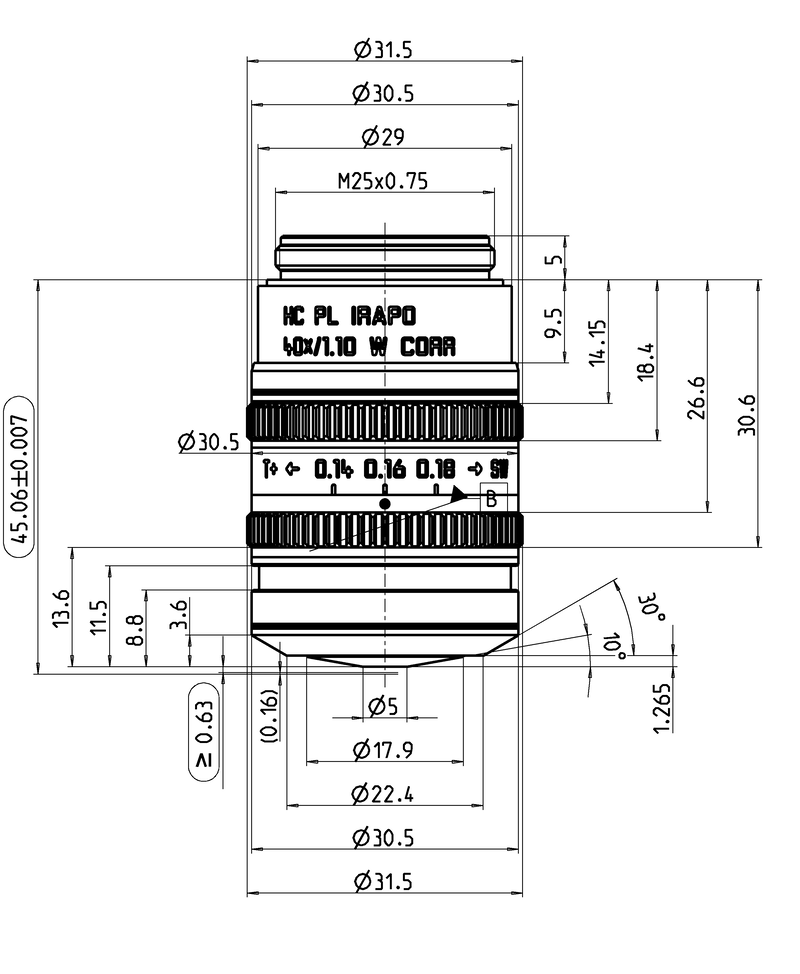

Dimension Sheet
