HC FLUOTAR L 25x/0,95 W DLS

Article Number 11506399
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 18
Free Working Distance (WD in mm) 2.5
Immersion Water
Iris Diaphragm Without
Magnification 25⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.95
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LightSheet, MP

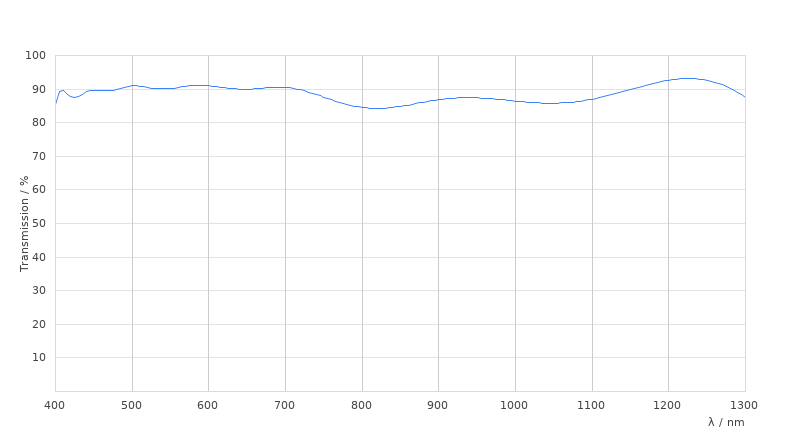

Transmission -

Figure

HC FLUOTAR L 25x/0,95 W DLS

Dimension Sheet

HC FLUOTAR L 25x/0,95 W DLS
