HC PL APO 40x/0,95 CORR

Article Number 11506414
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.17
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.95
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques
Transmission UV (365nm)

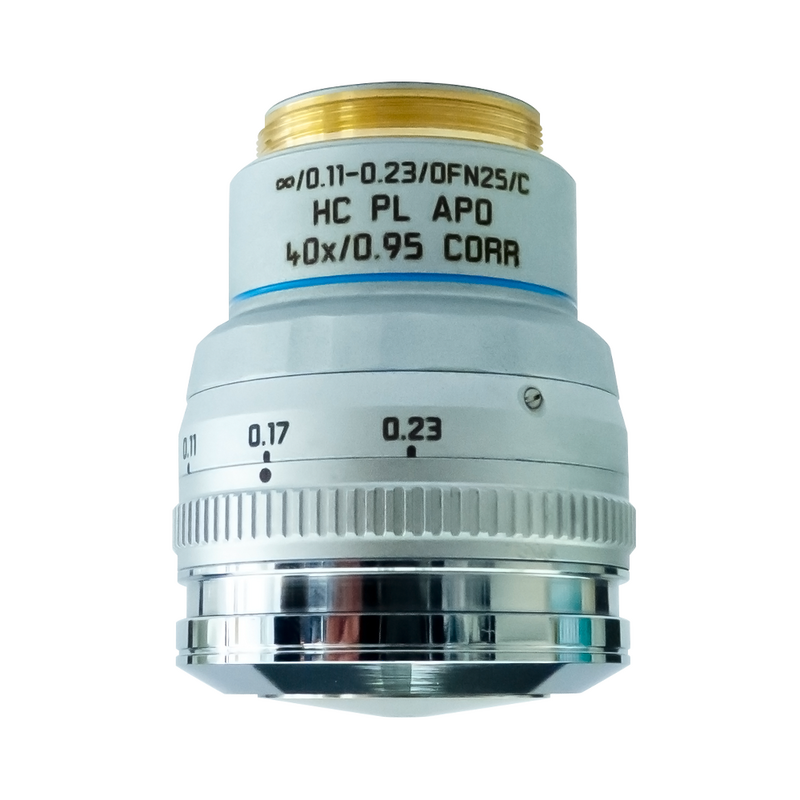

Figure

HC PL APO 40x/0,95 CORR

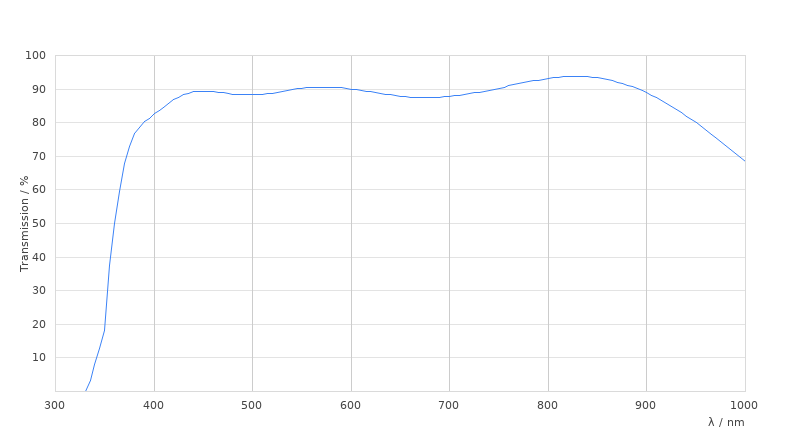

Transmission Curve

HC PL APO 40x/0,95 CORR

Dimension Sheet

HC PL APO 40x/0,95 CORR
