HC FLUOTAR L 16x/0,60 IMM CORR VISIR

Article Number 11506533
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism D
Field Number (FN) 20
Free Working Distance (WD in mm) 2.50
Immersion IMM incl BABB
Iris Diaphragm Without
Magnification 16⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.6
Objective Thread M25
Objective Type HC FLUOTAR L VISIR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques MP
Transmission IR (up to 1300nm)

Figure

HC FLUOTAR L 16x/0,60 IMM CORR VISIR

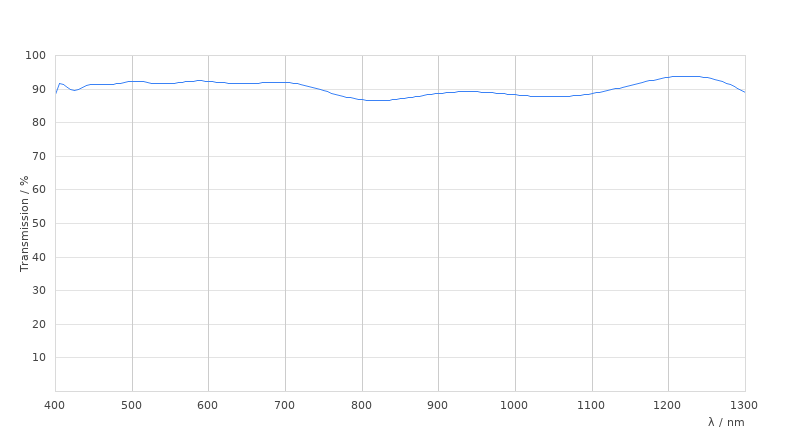

Transmission Curve

HC FLUOTAR L 16x/0,60 IMM CORR VISIR

Dimension Sheet

HC FLUOTAR L 16x/0,60 IMM CORR VISIR
