UVI 2,5x/0,07 MICRODISSECTION

Article Number 11518148
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 11.7
Immersion Dry
Iris Diaphragm Without
Magnification 2.5⨉
Contrasting Methodes TL-BF, TL-DF, FLUO
Numerical Aperture 0.07
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LMD
Transmission UV (340nm)

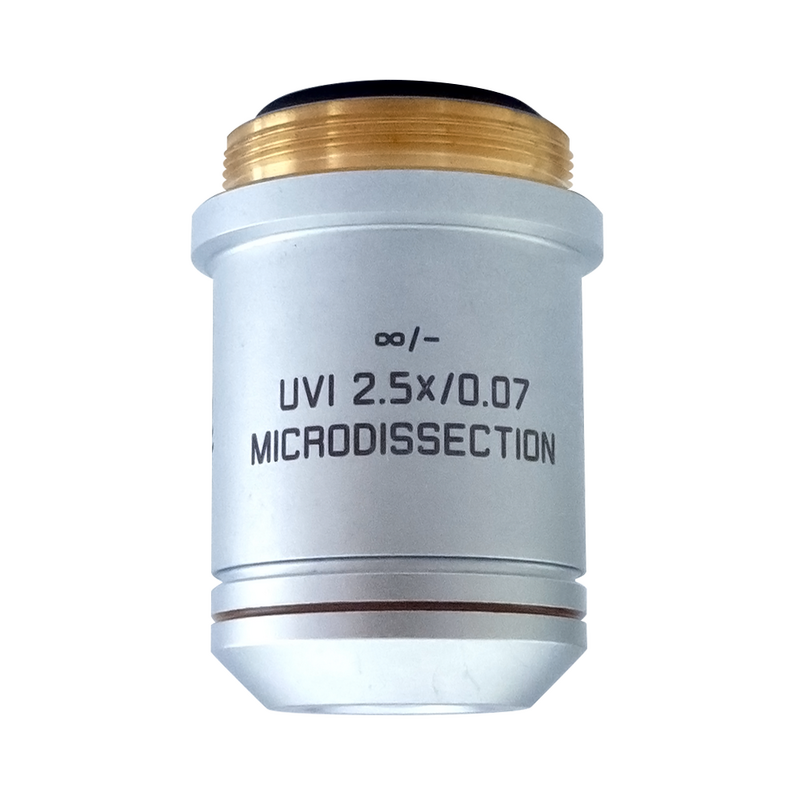

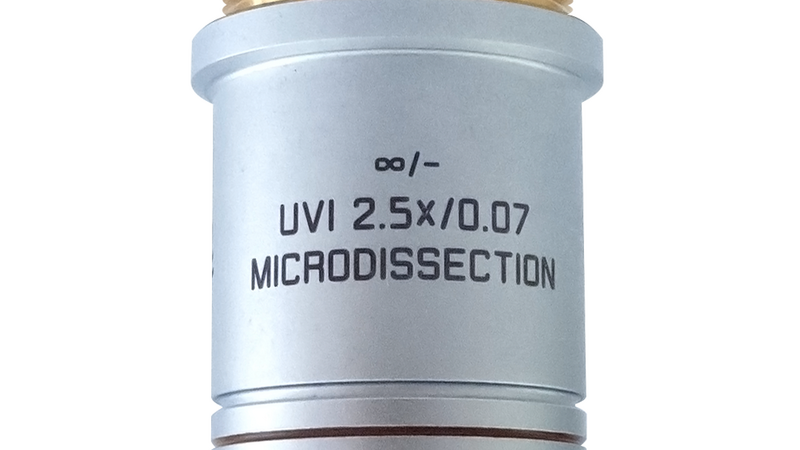

Figure

UVI 2,5x/0,07 MICRODISSECTION

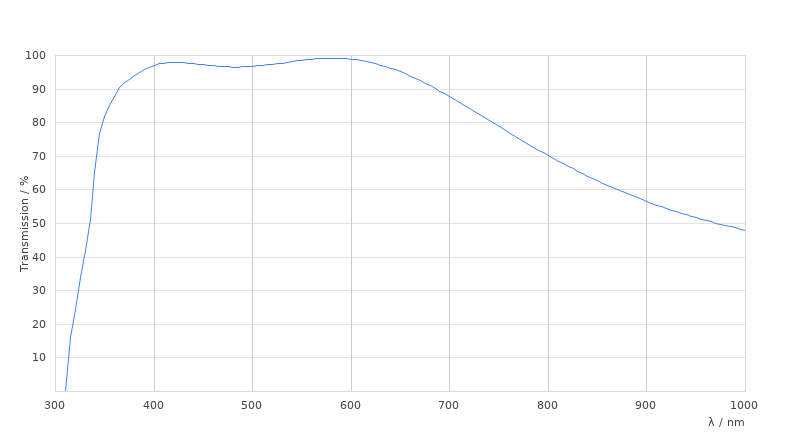

Transmission Curve

UVI 2,5x/0,07 MICRODISSECTION

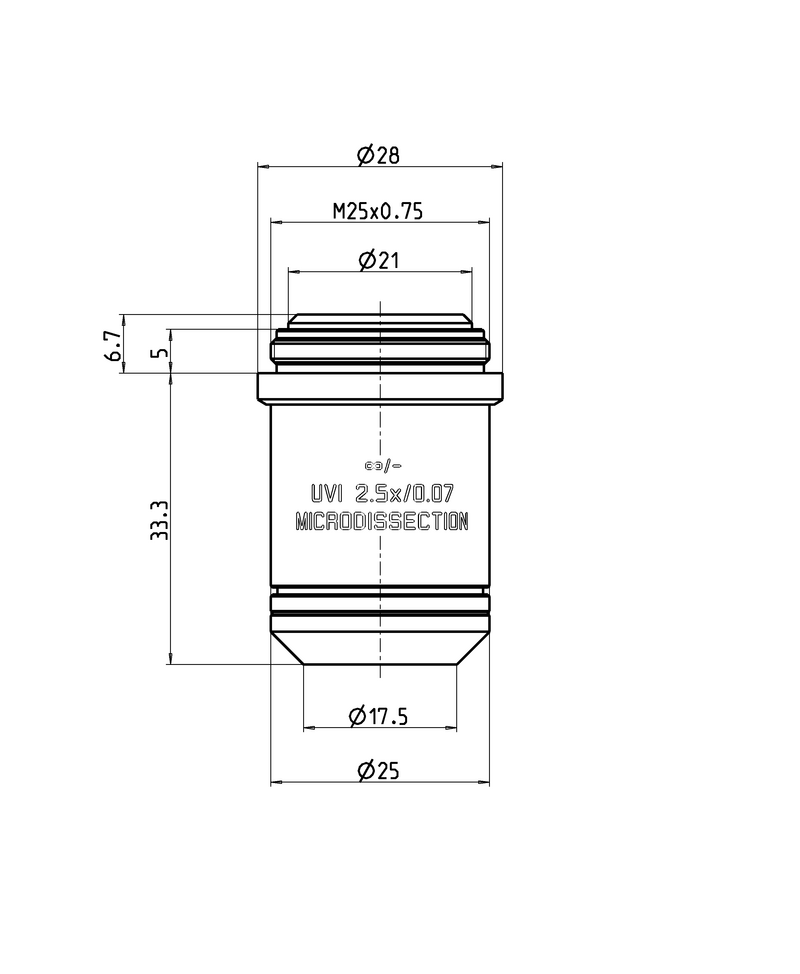

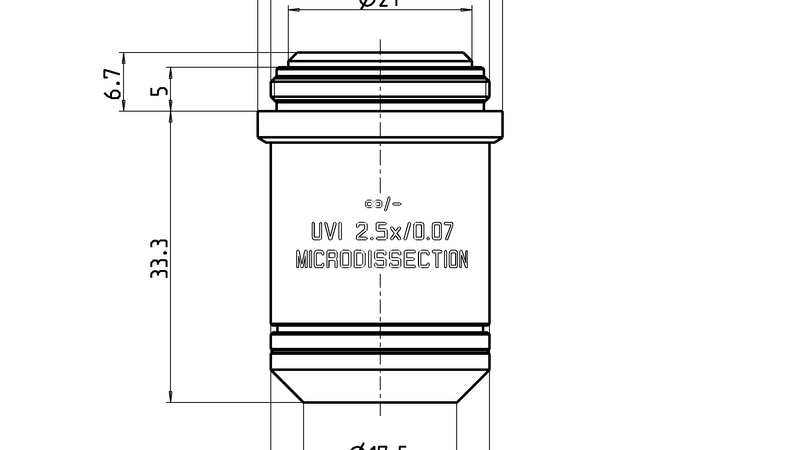

Dimension Sheet

UVI 2,5x/0,07 MICRODISSECTION
