HC FL PLAN 40x/0,65

Article Number 11506310
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.36
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, FLUO
Numerical Aperture 0.65
Objective Thread M25
Objective Type FL PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission -

Figure

HC FL PLAN 40x/0,65

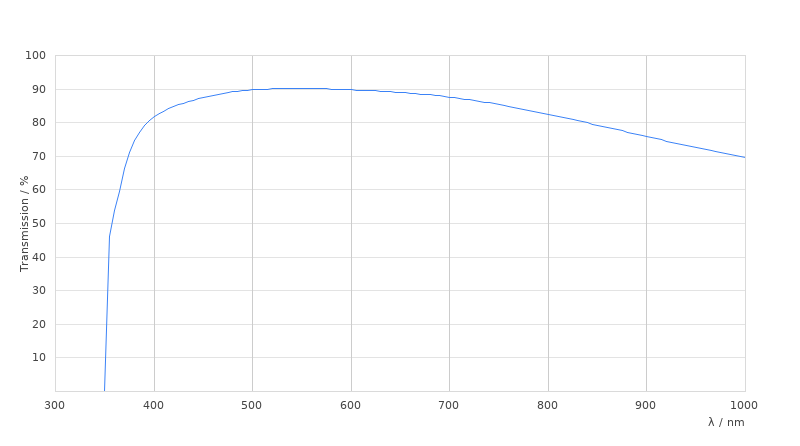

Transmission Curve

HC FL PLAN 40x/0,65

Dimension Sheet

HC FL PLAN 40x/0,65
