N PLAN EPI 10x/0,25

Article Number 11566082
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism B
Field Number (FN) 25
Free Working Distance (WD in mm) 17.7
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, IL-BF, IL-DIC, IL-P, FLUO
Numerical Aperture 0.25
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL
Transmission UV (365nm)

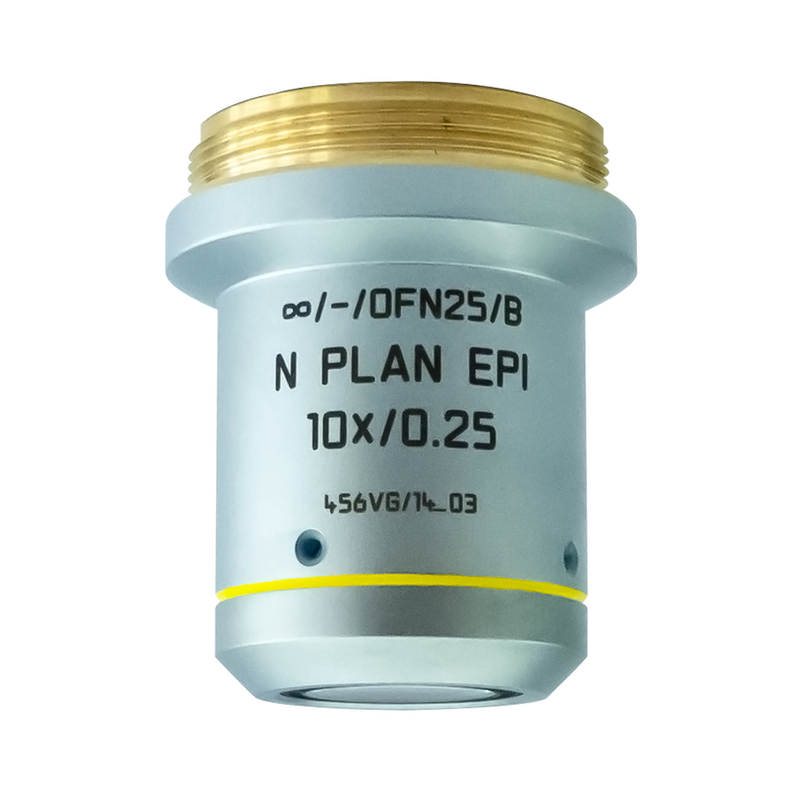

Figure

N PLAN EPI 10x/0,25

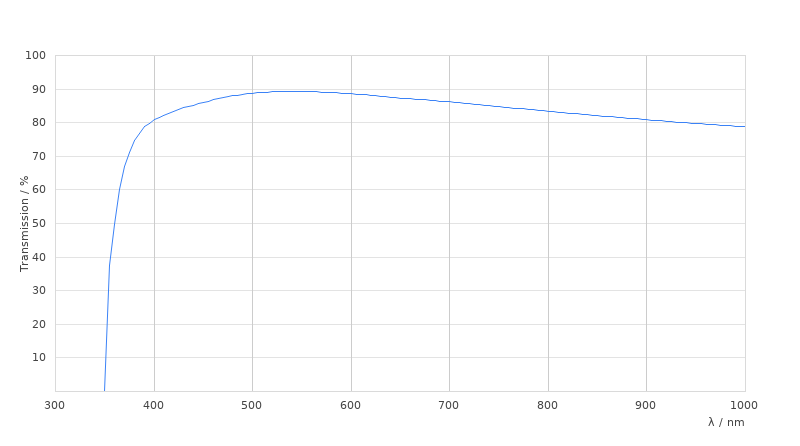

Transmission Curve

N PLAN EPI 10x/0,25

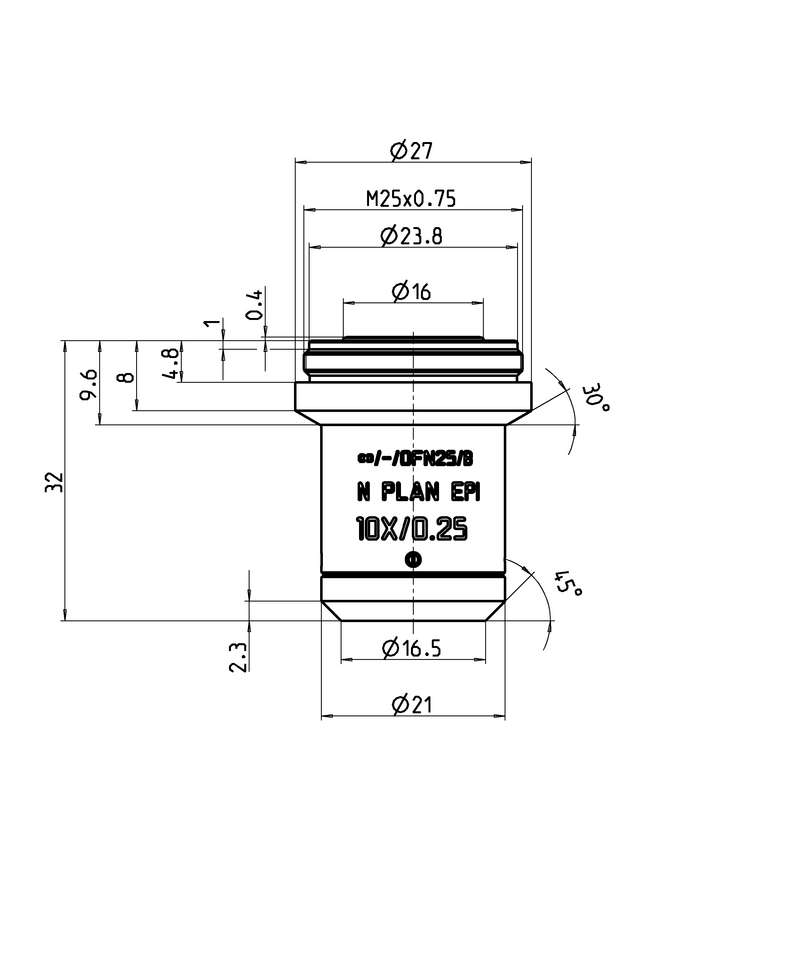

Dimension Sheet

N PLAN EPI 10x/0,25
