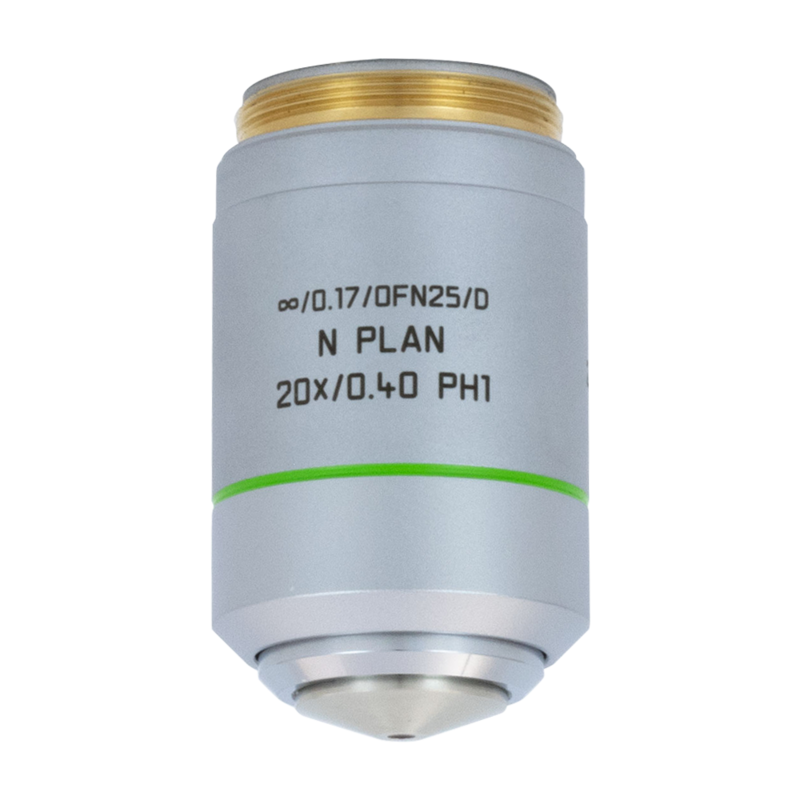

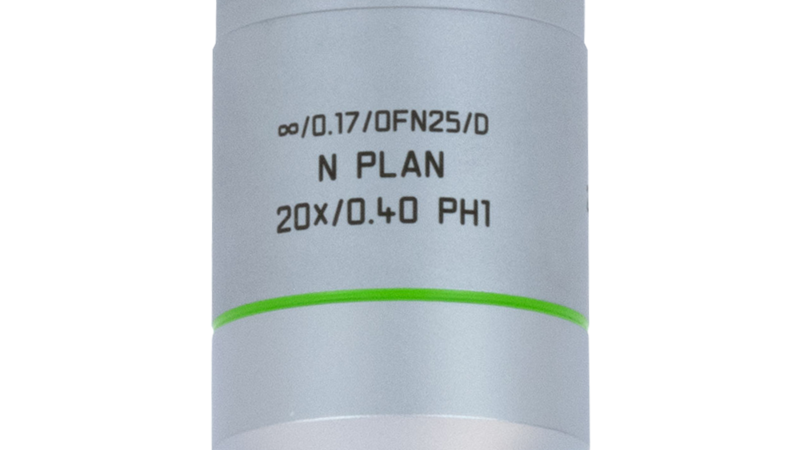

Microscope Objective N PLAN 20x/0,40 PH1
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11506098 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | - |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 0.39 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 20⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, FLUO |
| Numerical Aperture | 0.4 |
| Objective Thread | M25 |
| Objective Type | N PLAN |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | PH1 |

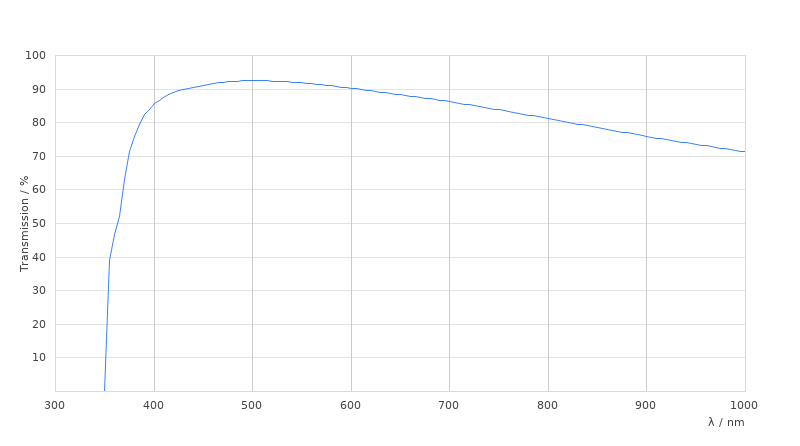

| Transmission | UV (340nm) |
