Article Number 11506184
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 0.26
Immersion Dry
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, FLUO
Numerical Aperture 0.8
Objective Thread M25
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Transmission UV (365nm)

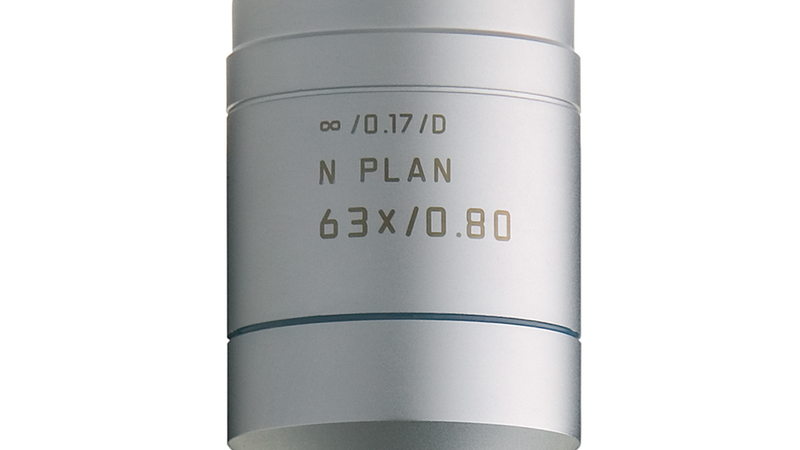

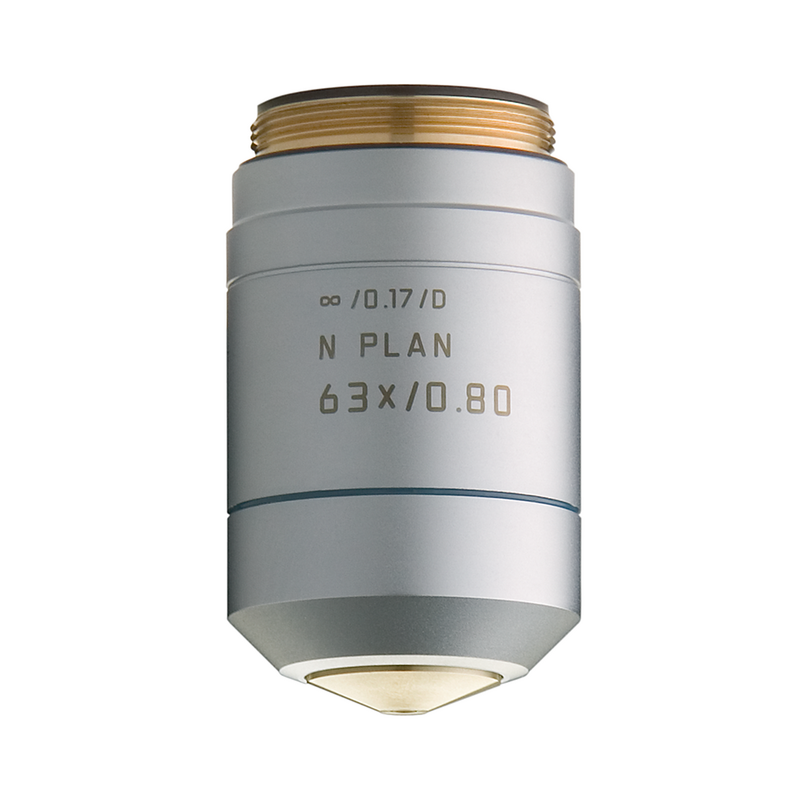

N PLAN 63x/0,80

Transmission Curve

N PLAN 63x/0,80

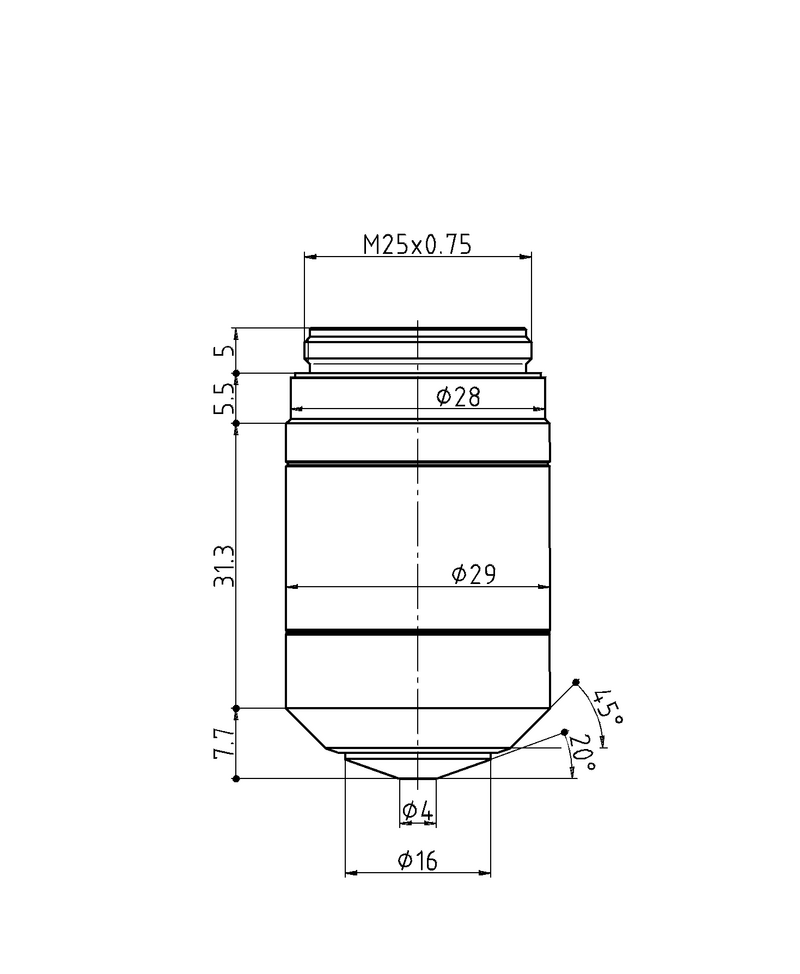

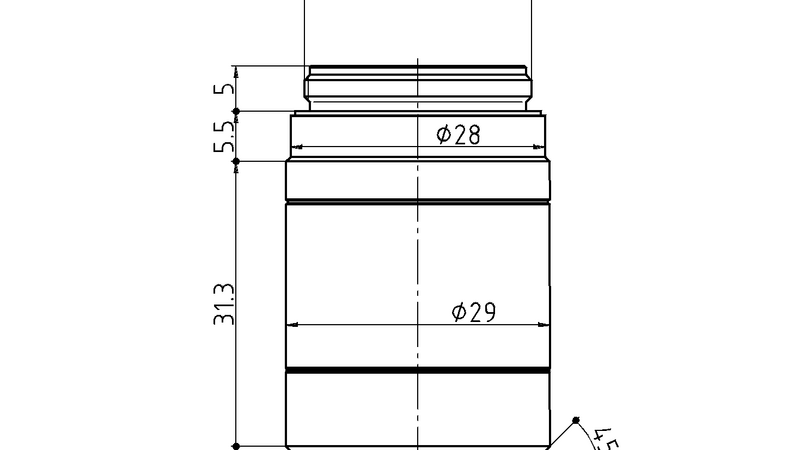

Dimension Sheet

N PLAN 63x/0,80
