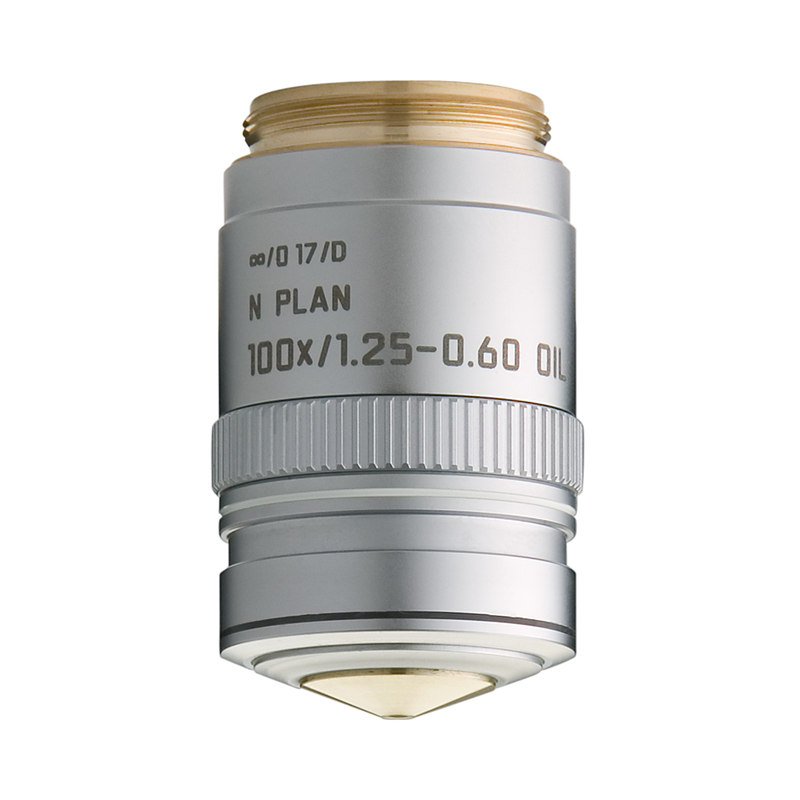

Microscope Objective N PLAN 100x/1,25-0,60 OIL
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11506207 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | D |
| Field Number (FN) | 22 |
| Free Working Distance (WD in mm) | 0.12 |
| Immersion | Oil |
| Iris Diaphragm | 0.6 |
| Magnification | 100⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-P, TL-DF, FLUO |
| Numerical Aperture | 1.25 |
| Objective Thread | M25 |
| Objective Type | N PLAN |
| Spring Loaded | Yes |
| Suitable for AFC (Adaptive Focus Control) | - |
| Techniques | |

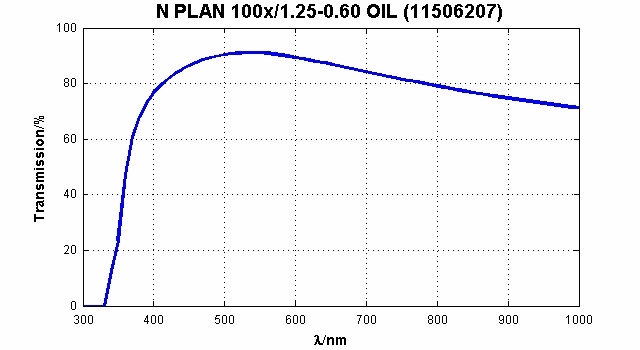

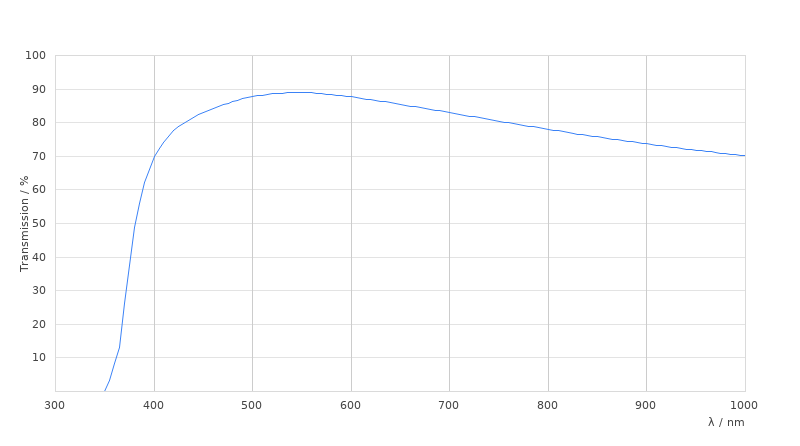

| Transmission | UV (340nm) |
