HC PL FLUOTAR L 63x/0,70 CORR PH2

Article Number 11506217
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 2.6-1.8
Immersion Dry
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, TL-IMC, FLUO
Numerical Aperture 0.7
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LMD, PH2
Transmission UV (340nm)

Figure

HC PL FLUOTAR L 63x/0,70 CORR PH2

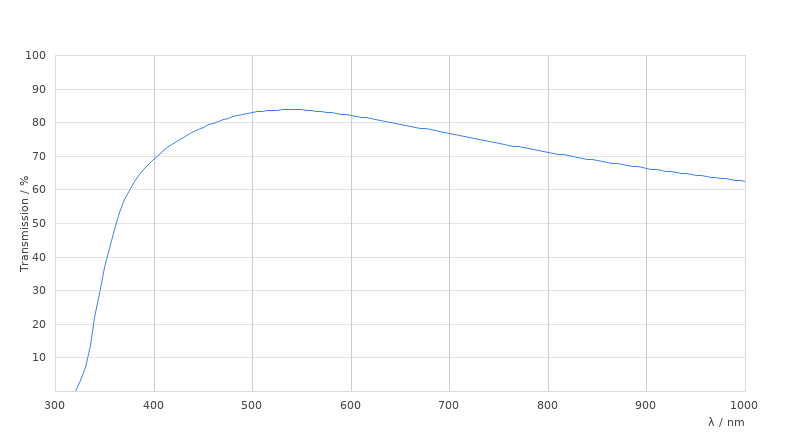

Transmission Curve

HC PL FLUOTAR L 63x/0,70 CORR PH2

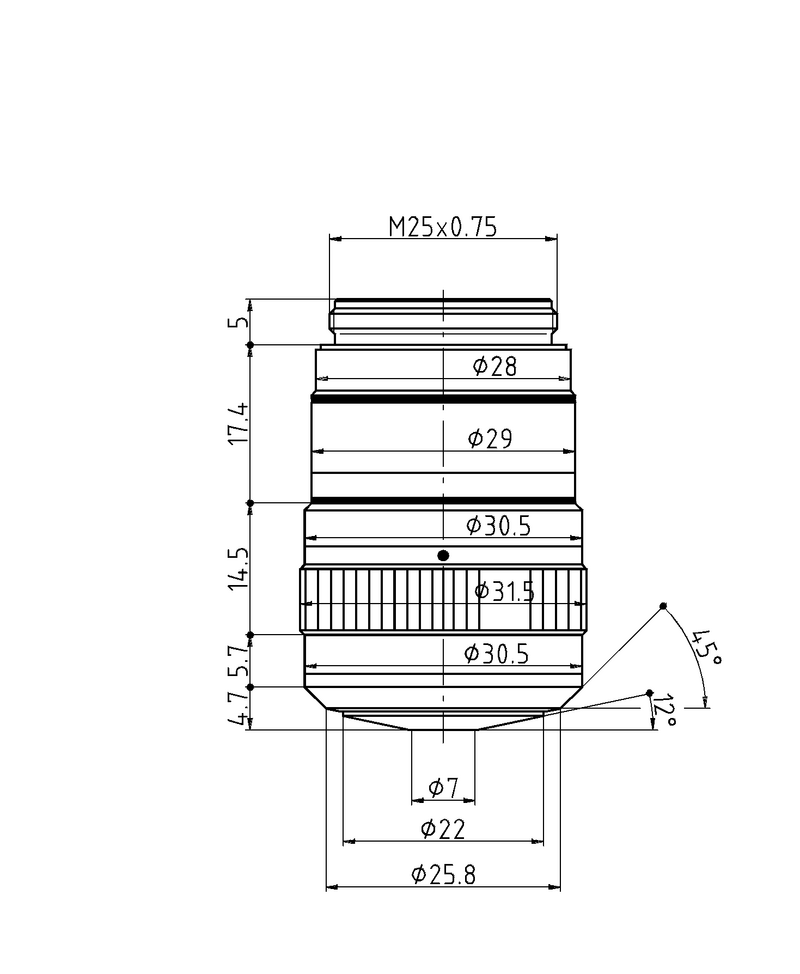

Dimension Sheet

HC PL FLUOTAR L 63x/0,70 CORR PH2
