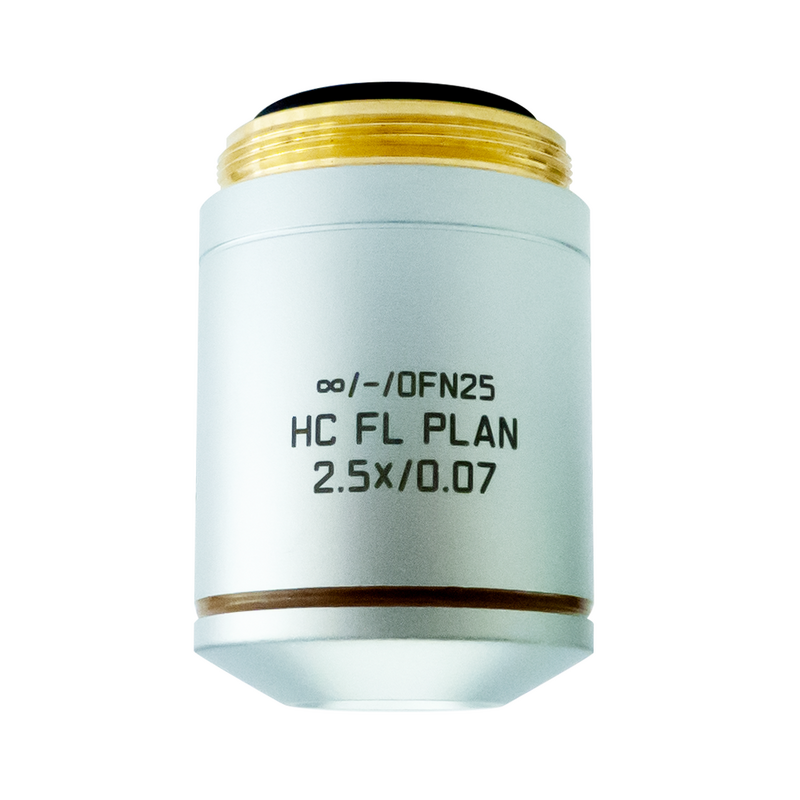

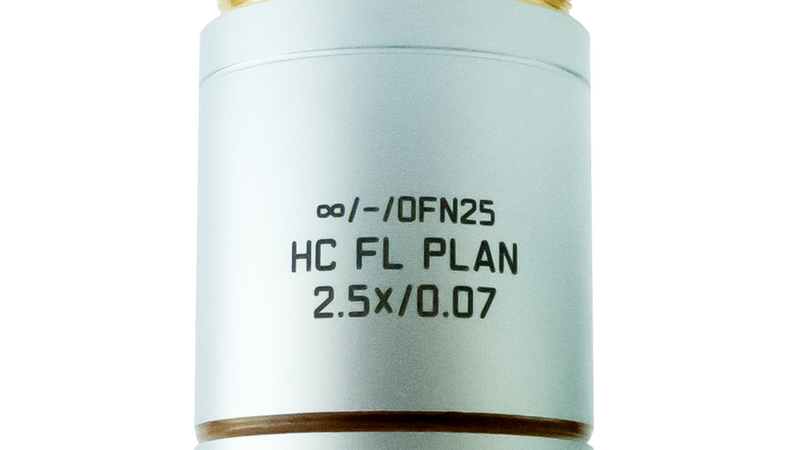

Microscope Objective HC FL PLAN 2,5x/0,07

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC FL PLAN 2,5x/0,07
HC FL PLAN 2,5x/0,07
HC FL PLAN 2,5x/0,07
HC FL PLAN 2,5x/0,07
HC FL PLAN 2,5x/0,07
HC FL PLAN 2,5x/0,07

Technical Specs

Article Number 11506304
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 11.2
Immersion Dry
Iris Diaphragm Without
Magnification 2.5⨉
Contrasting Methodes TL-BF, TL-P, FLUO
Numerical Aperture 0.07
Objective Thread M25
Objective Type FL PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques

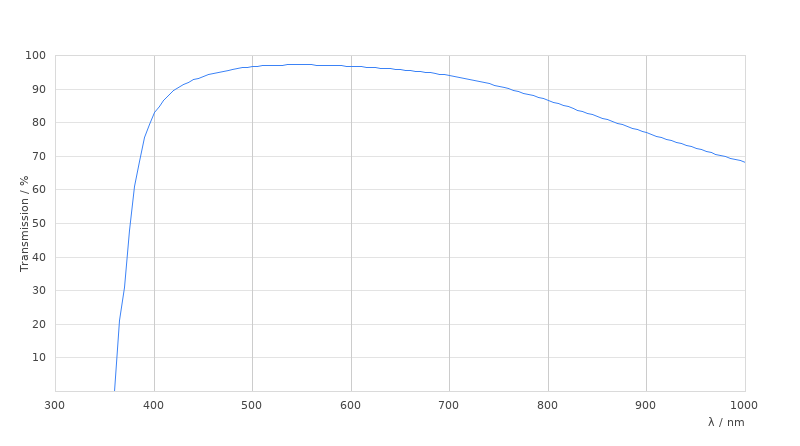

Transmission UV (365nm)
