HC PL APO 63x/1,40 OIL PH3 CS2

Article Number 11506351
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism E
Field Number (FN) 25
Free Working Distance (WD in mm) 0.14
Immersion Oil
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, TL-PH, FLUO
Numerical Aperture 1.4
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2, PH3
Transmission UV (340nm)

Figure

HC PL APO 63x/1,40 OIL PH3 CS2

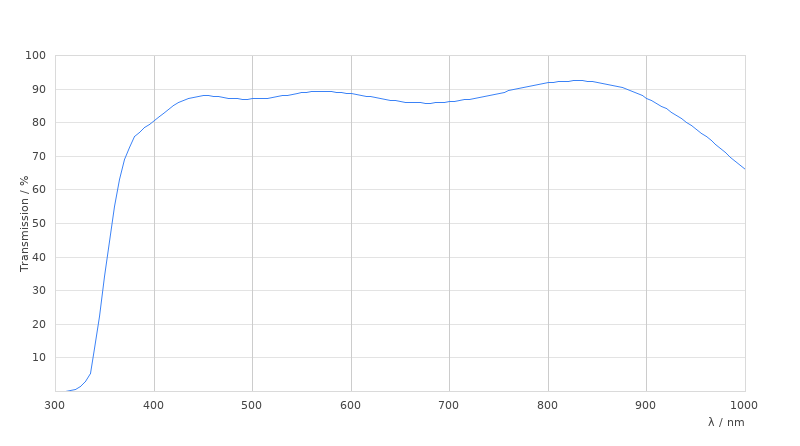

Transmission Curve

HC PL APO 63x/1,40 OIL PH3 CS2

Dimension Sheet

HC PL APO 63x/1,40 OIL PH3 CS2
