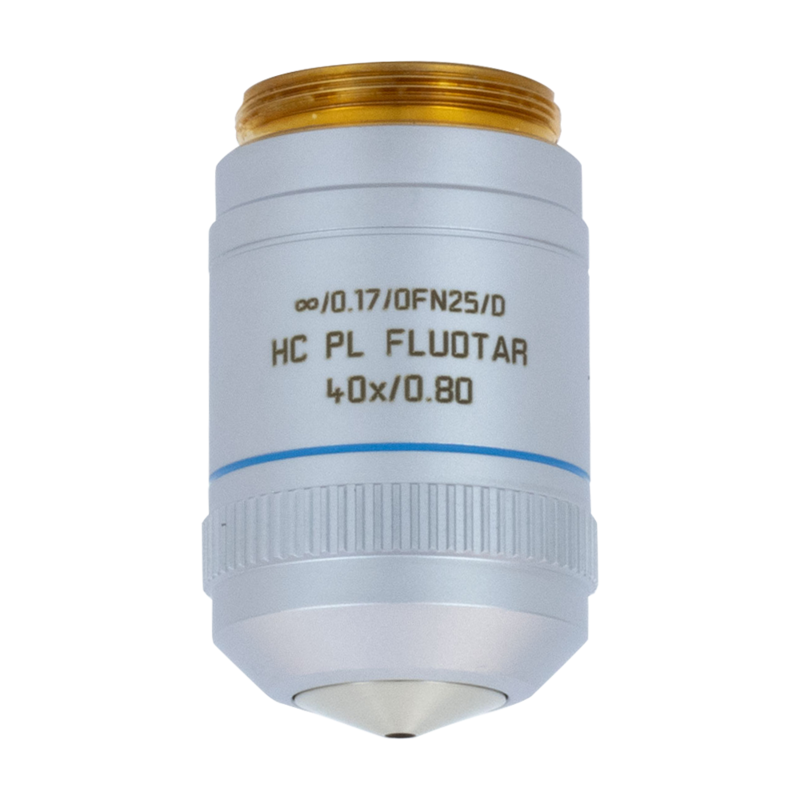

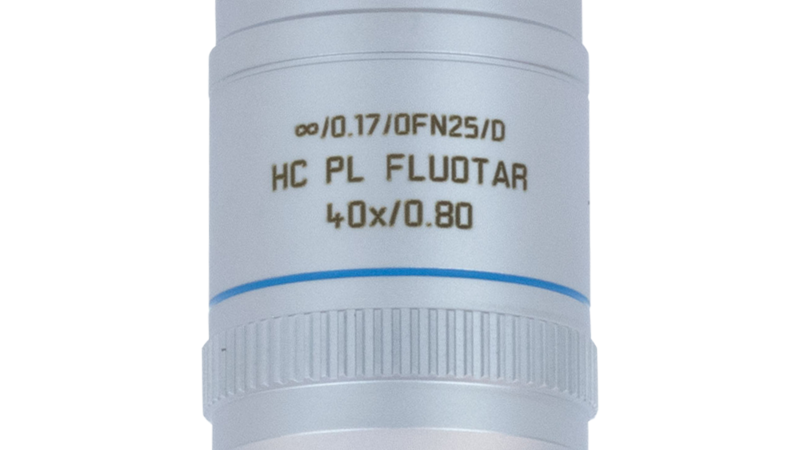

HC PL FLUOTAR 40x/0,80

Article Number 11506382
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.4
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-IMC, FLUO
Numerical Aperture 0.8
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques
Transmission UV (340nm)

Figure

HC PL FLUOTAR 40x/0,80

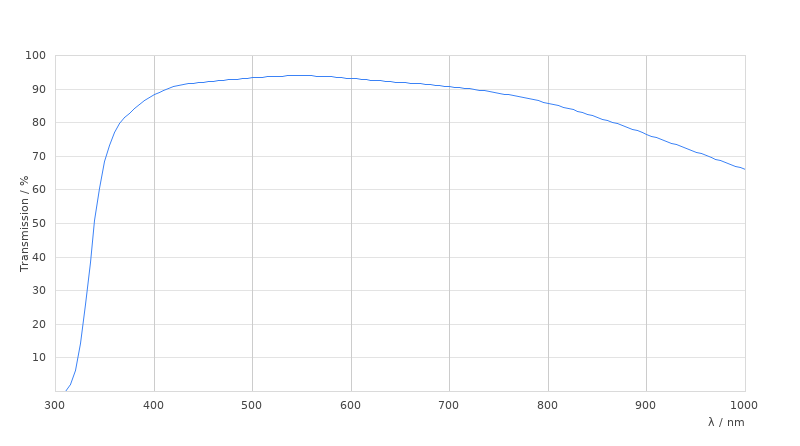

Transmission Curve

HC PL FLUOTAR 40x/0,80

Dimension Sheet

HC PL FLUOTAR 40x/0,80
