Article Number 11506386
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 20
Free Working Distance (WD in mm) 0.3
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DF, FLUO
Numerical Aperture 0.8
Objective Thread M25
Objective Type HI PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission -

Figure

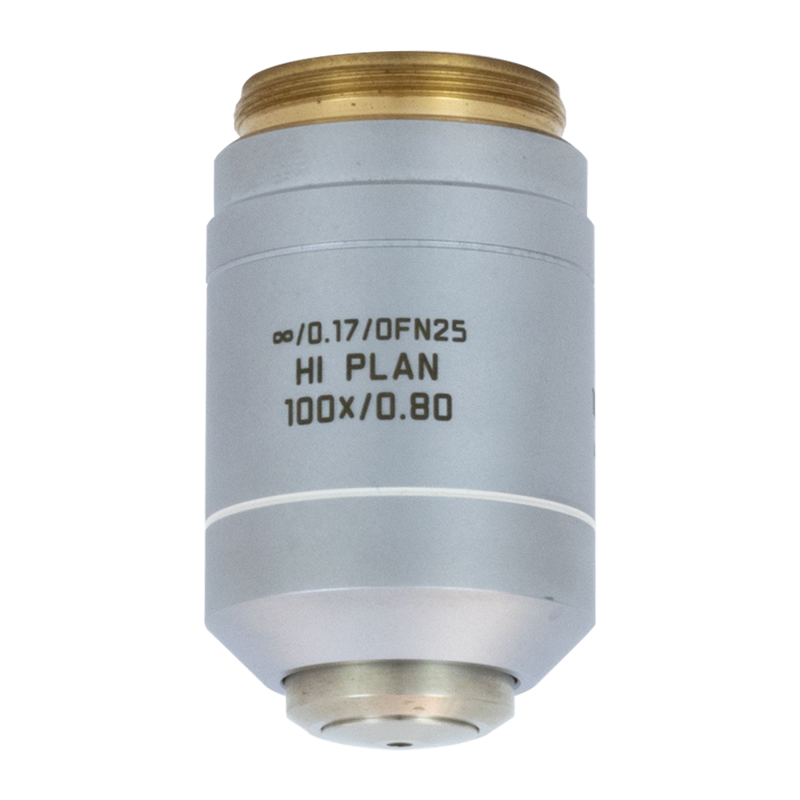

HI PLAN 100x/0,80

Dimension Sheet

HI PLAN 100x/0,80
