Article Number 11506410
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism A
Field Number (FN) 25
Free Working Distance (WD in mm) 2.8
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.45
Objective Thread M25
Objective Type PLAN APO
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Transmission UV (340nm)


HC PL APO 10x/0,45

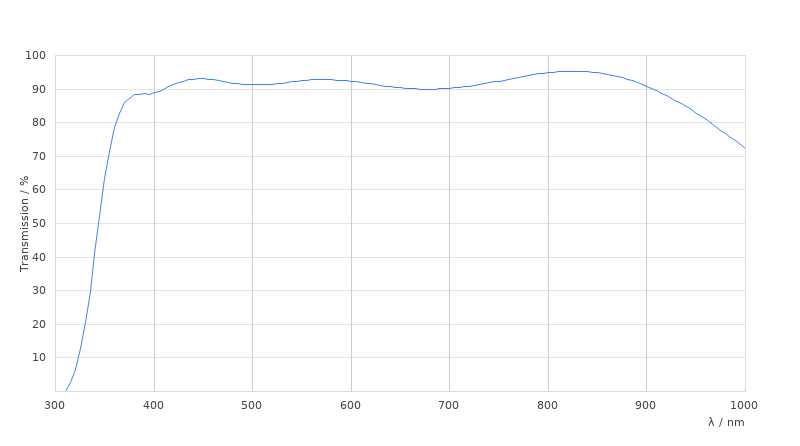

Transmission Curve

HC PL APO 10x/0,45

Dimension Sheet

HC PL APO 10x/0,45
