Microscope Objective HC PL FLUOTAR 10x/0,32

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL FLUOTAR 10x/0,32
HC PL FLUOTAR 10x/0,32
HC PL FLUOTAR 10x/0,32
HC PL FLUOTAR 10x/0,32
HC PL FLUOTAR 10x/0,32
HC PL FLUOTAR 10x/0,32

Technical Specs

Article Number 11506432
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 11.2
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-P, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.32
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques

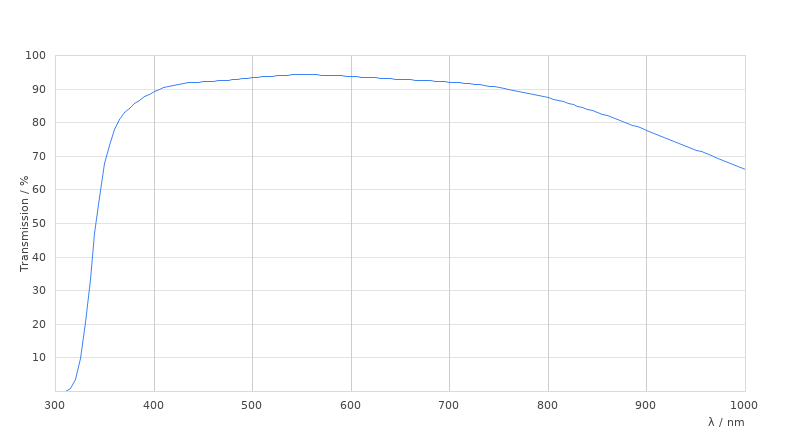

Transmission UV (340nm)
