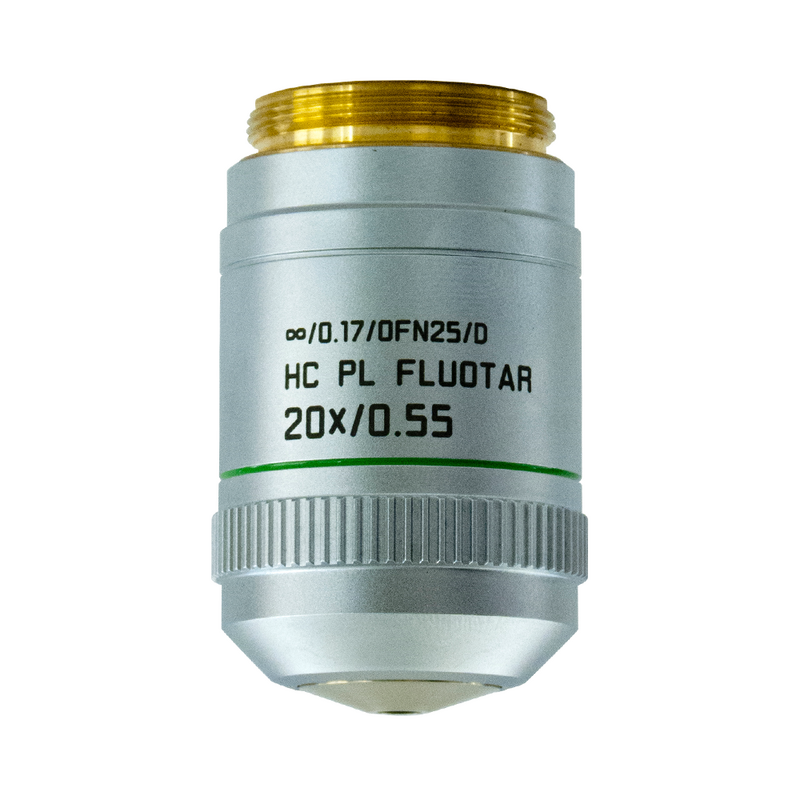

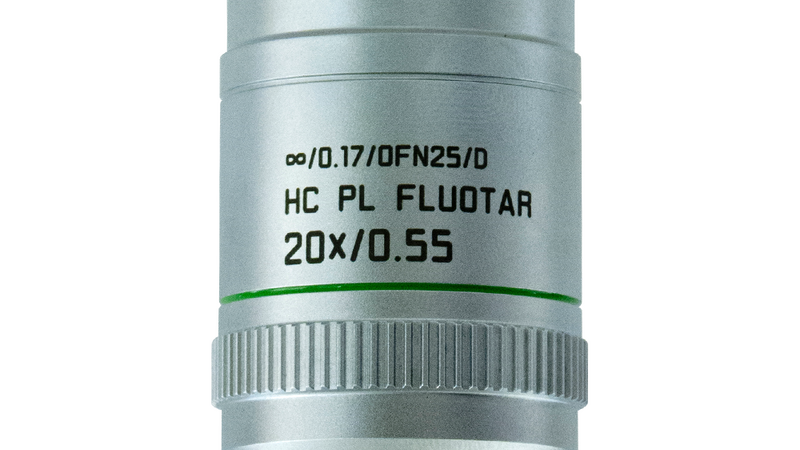

Microscope Objective HC PL FLUOTAR 20x/0,55

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL FLUOTAR 20x/0,55
HC PL FLUOTAR 20x/0,55
HC PL FLUOTAR 20x/0,55
HC PL FLUOTAR 20x/0,55
HC PL FLUOTAR 20x/0,55
HC PL FLUOTAR 20x/0,55

Technical Specs

Article Number 11506519
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 1.2
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.55
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques

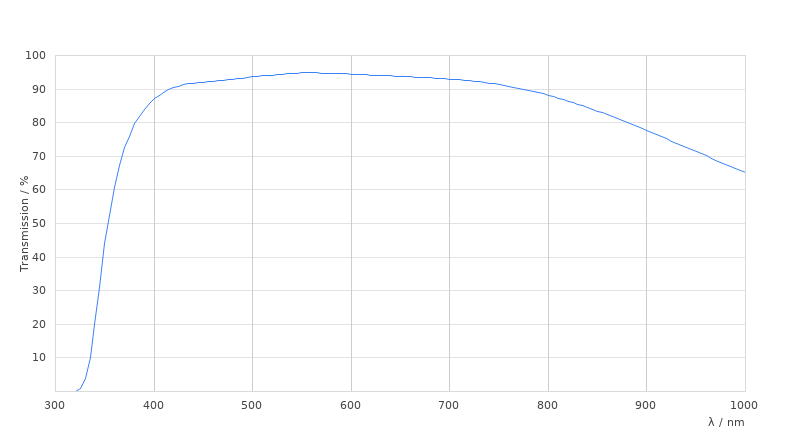

Transmission UV (340nm)
