Microscope Objective HC PL APO 63x1,40 OIL CS2

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL APO 63x1,40  OIL CS2
HC PL APO 63x1,40  OIL CS2
HC PL APO 63x1,40  OIL CS2
HC PL APO 63x1,40  OIL CS2
HC PL APO 63x1,40  OIL CS2
HC PL APO 63x1,40  OIL CS2

Technical Specs

Article Number 11506535
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism E
Field Number (FN) 22
Free Working Distance (WD in mm) 0.14
Immersion Oil
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, TL-IMC, FLUO
Numerical Aperture 1.4
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2

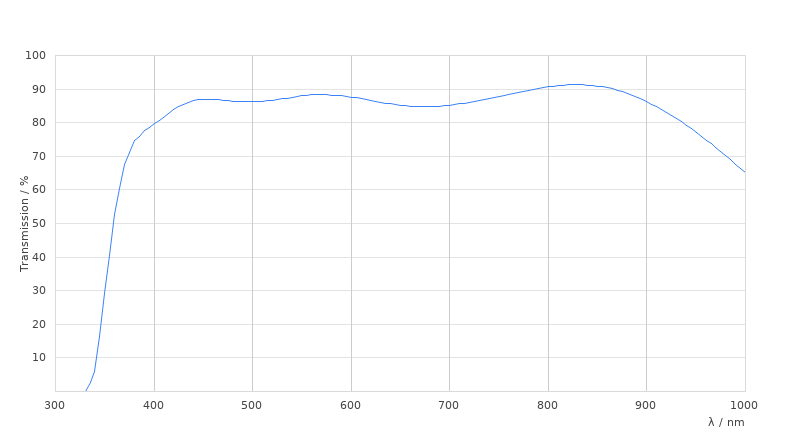

Transmission UV (365nm)
