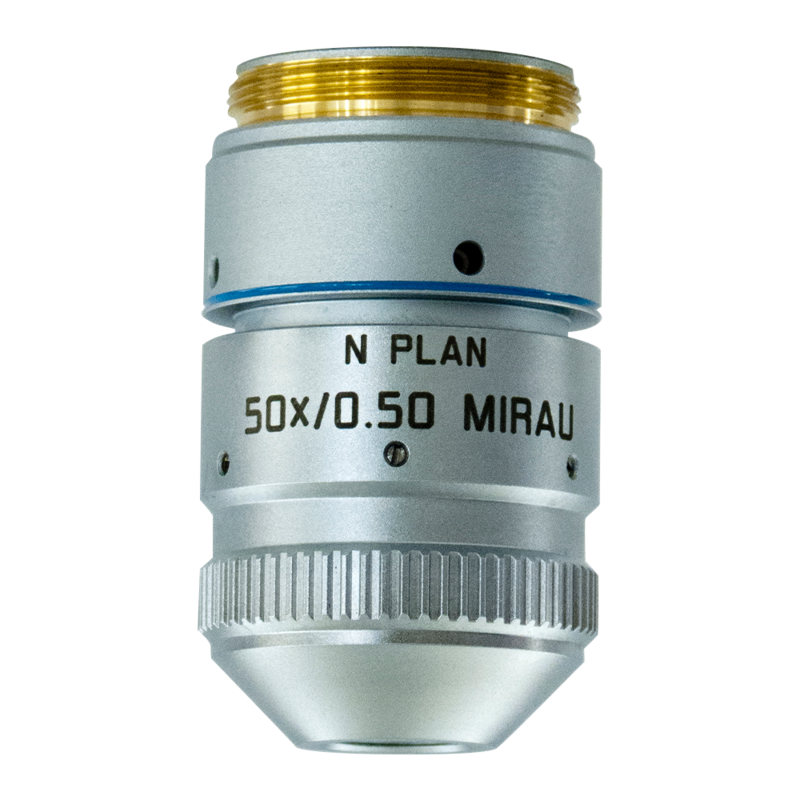

Microscope Objective N PLAN L 50x/0.50 MIRAU

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN L 50x/0.50 MIRAU
N PLAN L 50x/0.50 MIRAU
N PLAN L 50x/0.50 MIRAU
N PLAN L 50x/0.50 MIRAU

Technical Specs

Article Number 11532672
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 2.52
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-P, FLUO
Numerical Aperture 0.5
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, Interferometry

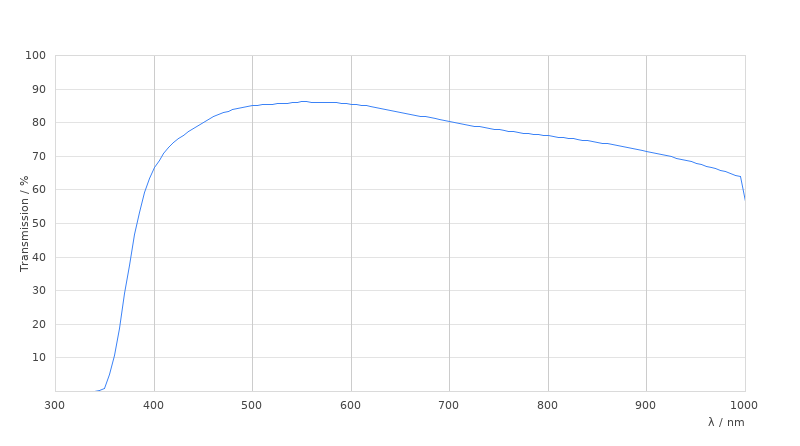

Transmission UV (365nm)
