HI PLAN EPI 20x/0,40 POL

Article Number 11556085
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 1.15
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-POL, TL-DF, IL-BF, IL-POL, FLUO
Numerical Aperture 0.4
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL, POL
Transmission -

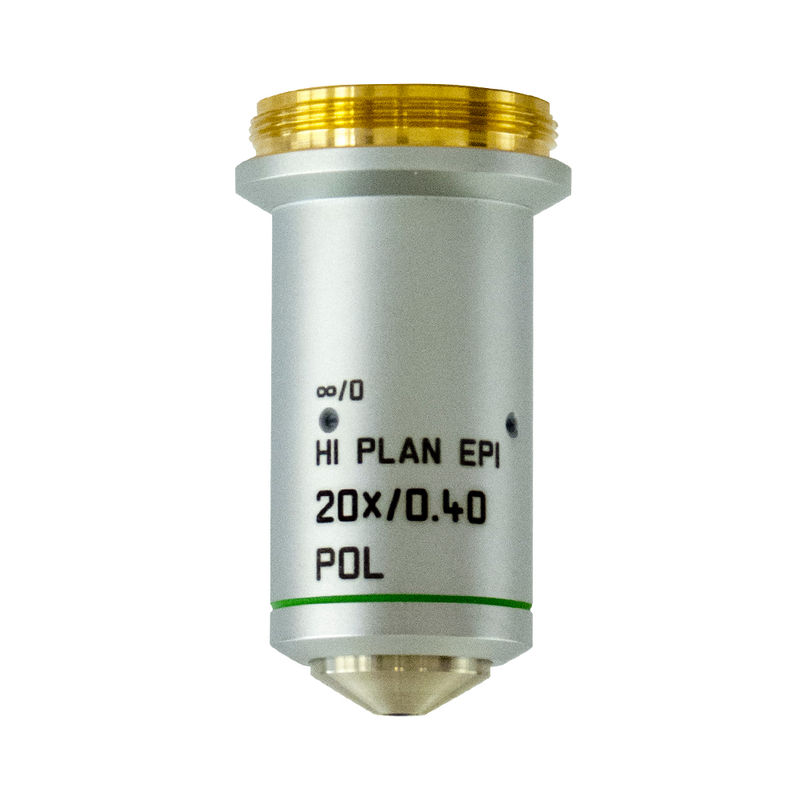

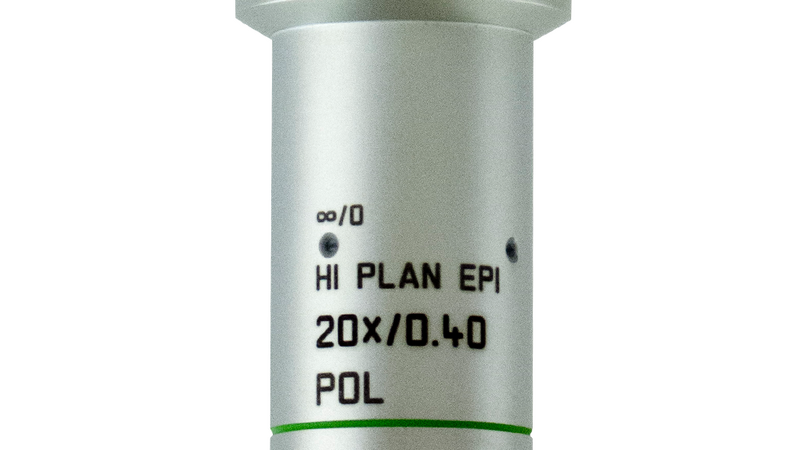

Figure

HI PLAN EPI 20x/0,40 POL
