Microscope Objective HC PL FLUOTAR 5x/0,15 BD

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL FLUOTAR 5x/0,15 BD
HC PL FLUOTAR 5x/0,15 BD
HC PL FLUOTAR 5x/0,15 BD
HC PL FLUOTAR 5x/0,15 BD
HC PL FLUOTAR 5x/0,15 BD
HC PL FLUOTAR 5x/0,15 BD

Technical Specs

Article Number 11566046
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 13.0
Immersion Dry
Iris Diaphragm Without
Magnification 5⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.15
Objective Thread M32
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL

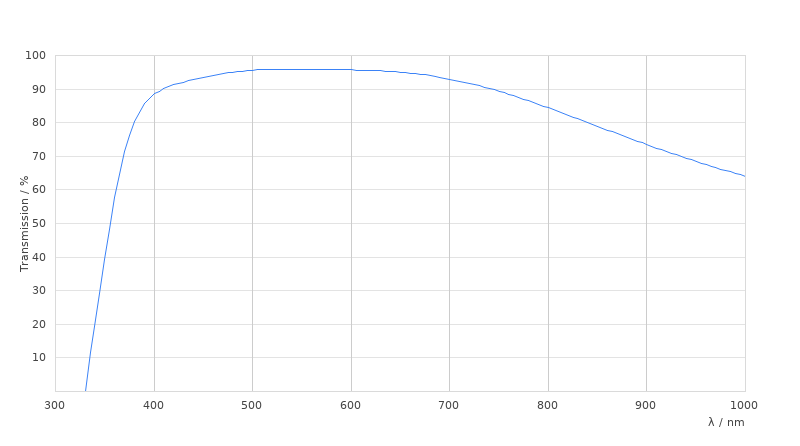

Transmission -
