Microscope Objective N PLAN EPI 50x/0,75 XLF

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
N PLAN EPI 50x/0,75 XLF
N PLAN EPI 50x/0,75 XLF
N PLAN EPI 50x/0,75 XLF
N PLAN EPI 50x/0,75 XLF

Technical Specs

Article Number 11566081
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 22
Free Working Distance (WD in mm) 1.50
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, FLUO
Numerical Aperture 0.75
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques IL

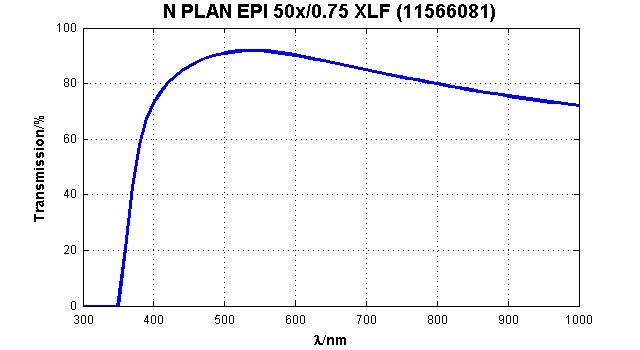

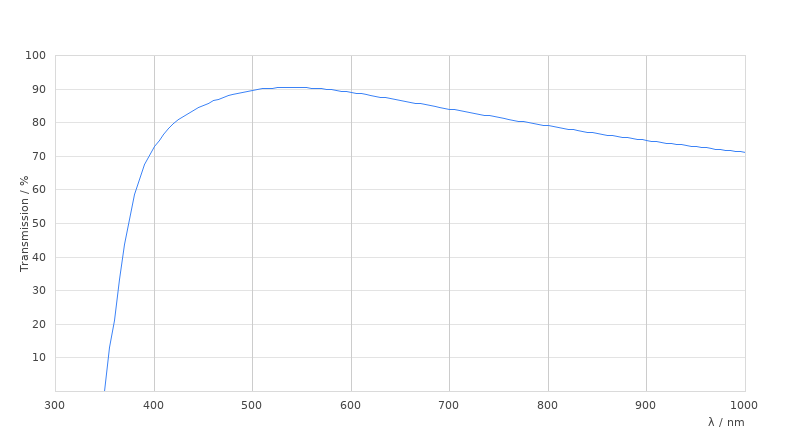

Transmission UV (365nm)
