Microscope Objective HC PL FLUOTAR L 50x/0.55 BD

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC PL FLUOTAR L 50x/0.55 BD
HC PL FLUOTAR L 50x/0.55 BD
HC PL FLUOTAR L 50x/0.55 BD
HC PL FLUOTAR L 50x/0.55 BD

Technical Specs

Article Number 11566214
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 8.2
Immersion Dry
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.55
Objective Thread M32
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL

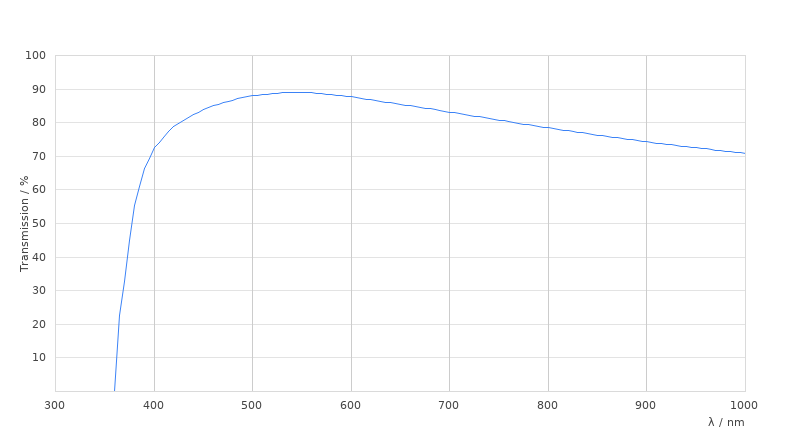

Transmission -
