HC PL FLUOTAR 10x/0,30 BD

Article Number 11566503
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 11.0
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, IL-BF, IL-DIC, IL-P, IL-DF, FLUO
Numerical Aperture 0.3
Objective Thread M32
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques BD, IL
Transmission UV (340nm)

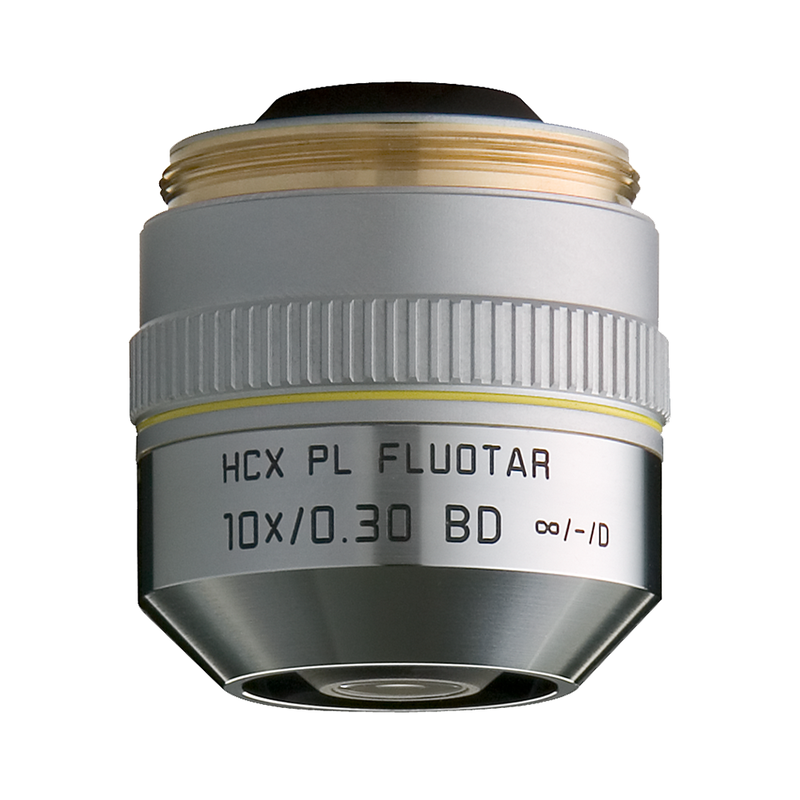

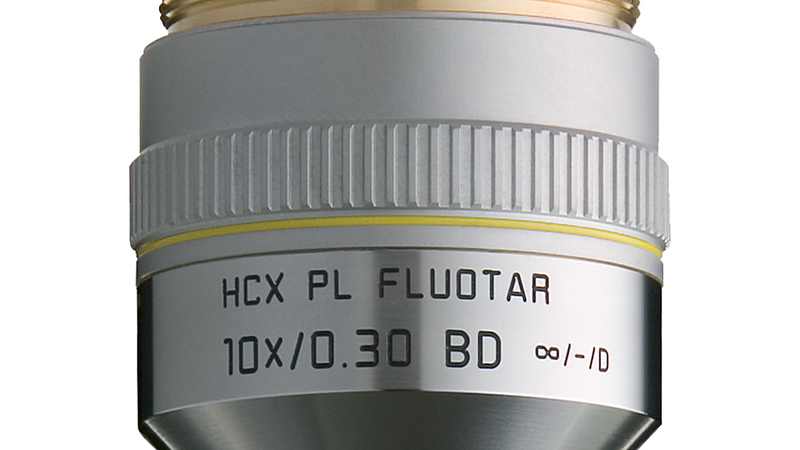

Figure

HC PL FLUOTAR 10x/0,30 BD

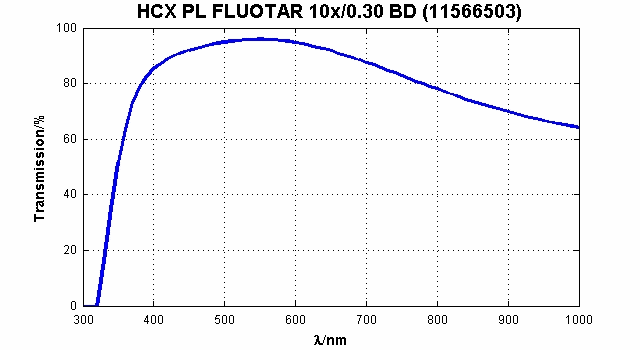

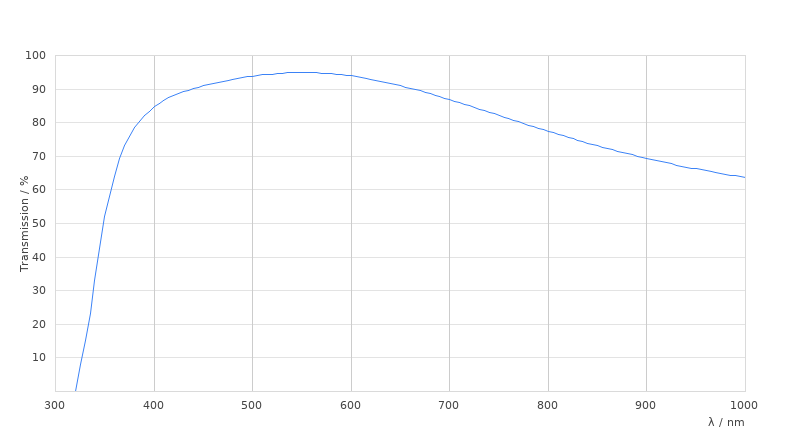

Transmission Curve

HC PL FLUOTAR 10x/0,30 BD

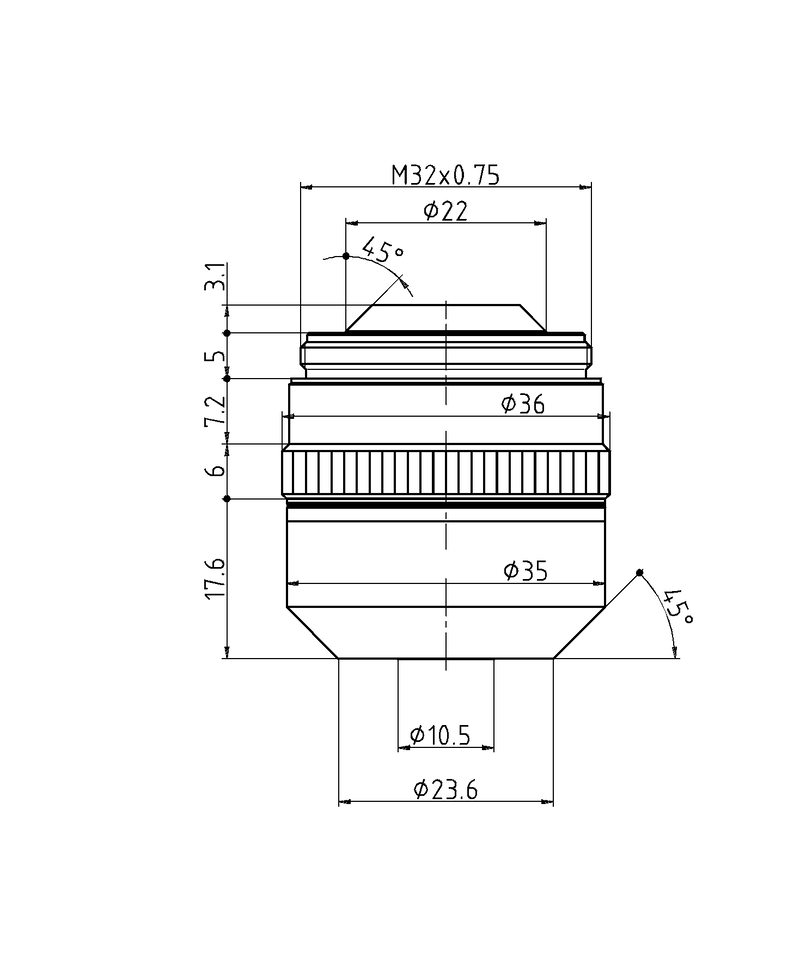

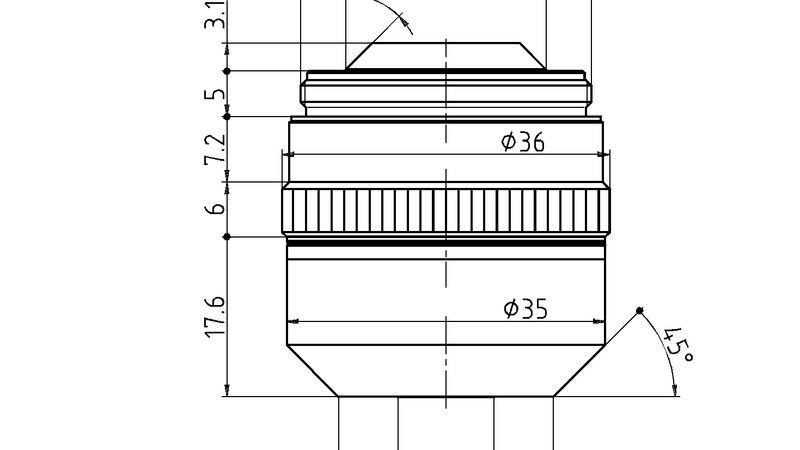

Dimension Sheet

HC PL FLUOTAR 10x/0,30 BD
