HC PL FLUOTAR 1,25x/0,04 T

Article Number 11506215
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 3.7
Immersion Dry
Iris Diaphragm Without
Magnification 1.25⨉
Contrasting Methodes TL-BF, TL-P, FLUO
Numerical Aperture 0.04
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission UV (365nm)

Figure

HC PL FLUOTAR 1,25x/0,04 T

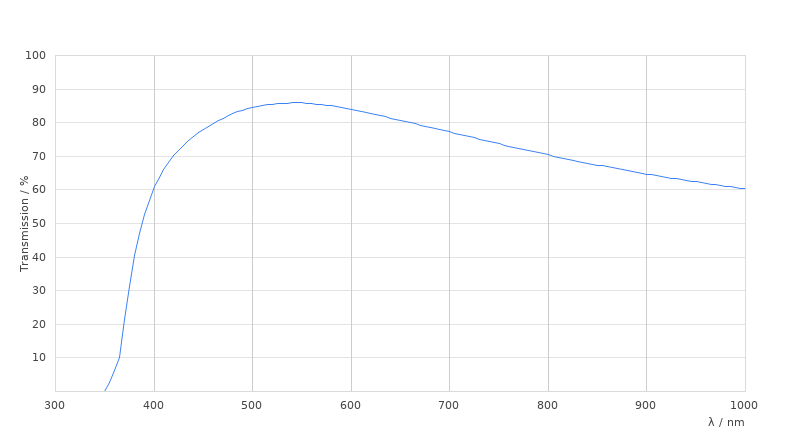

Transmission Curve

HC PL FLUOTAR 1,25x/0,04 T

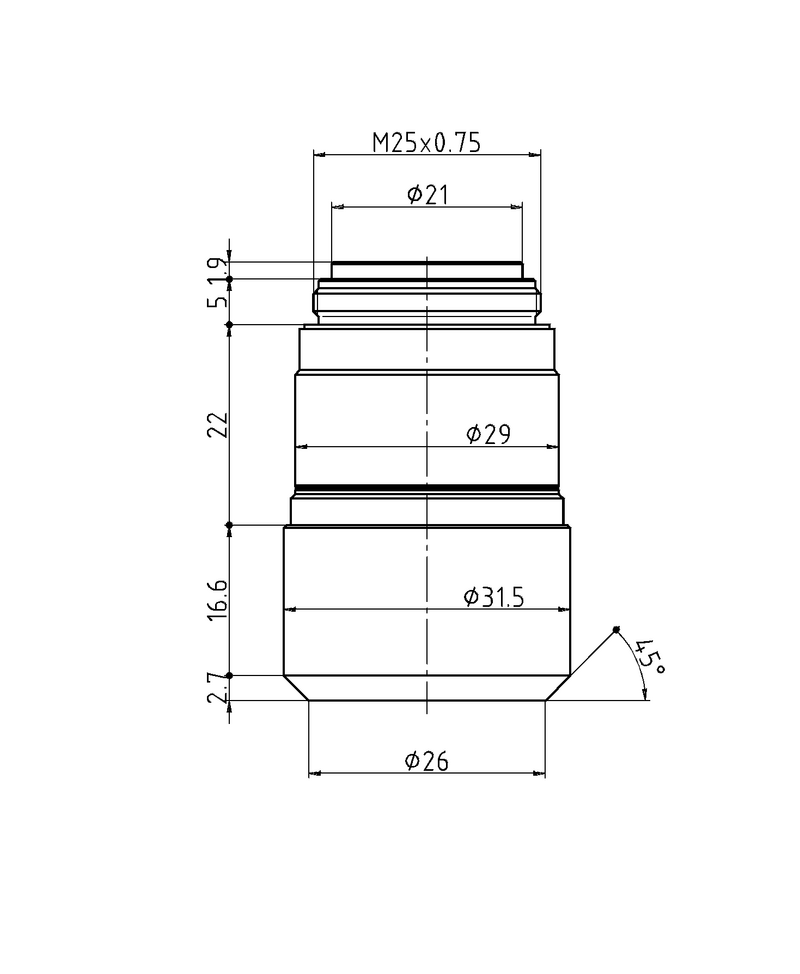

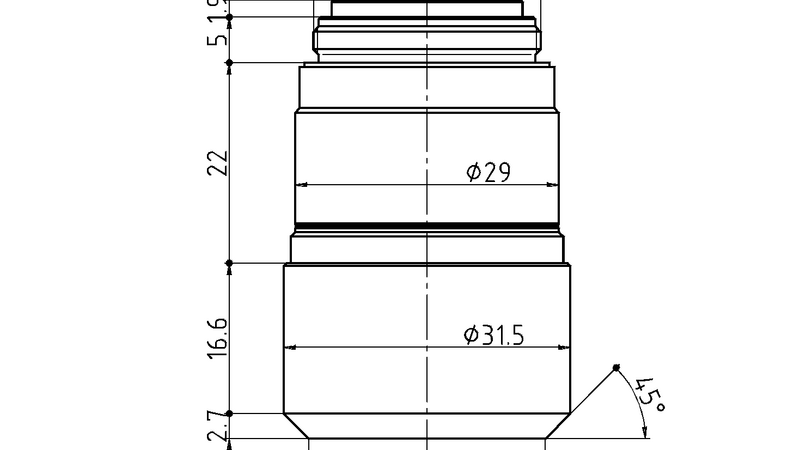

Dimension Sheet

HC PL FLUOTAR 1,25x/0,04 T
