HI PLAN 100x/1,25 OIL PH3

Article Number 11506241
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 0.10
Immersion Oil
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-PH, FLUO
Numerical Aperture 1.25
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques PH3
Transmission -

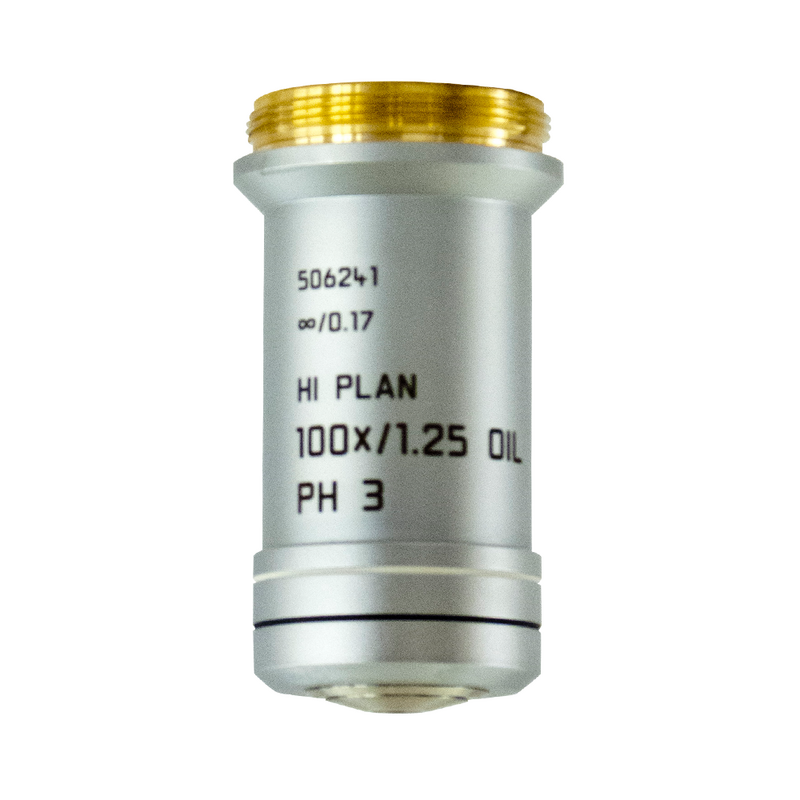

Figure

HI PLAN 100x/1,25 OIL PH3

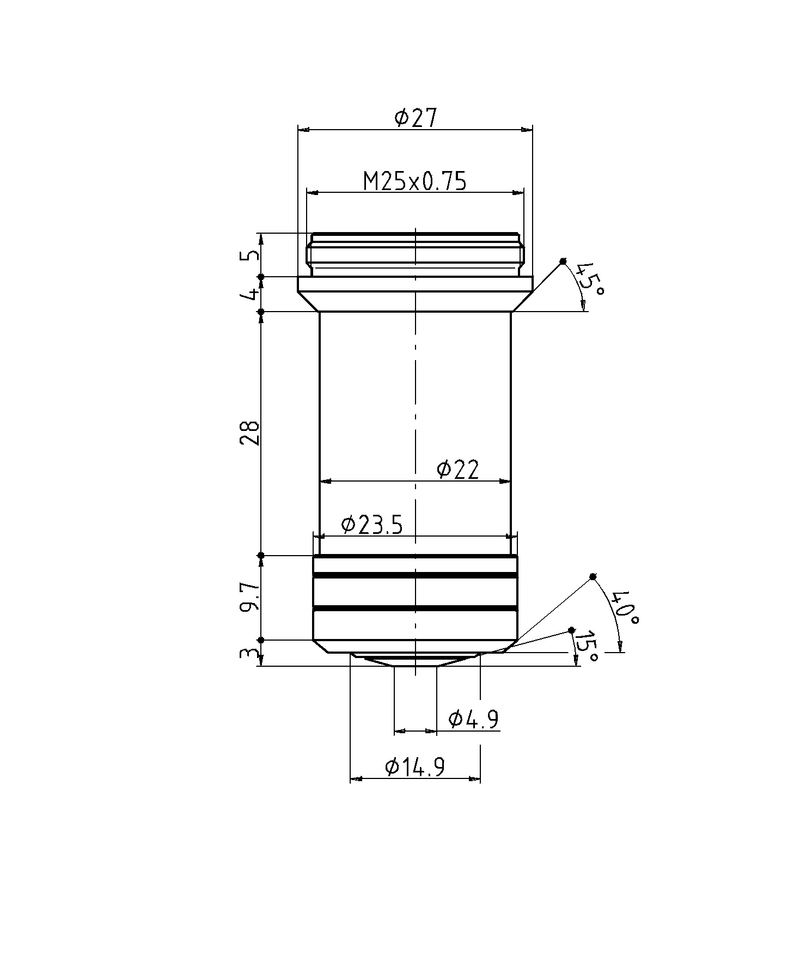

Dimension Sheet

HI PLAN 100x/1,25 OIL PH3
