Article Number 11506247
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 6.9
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.35
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques
Transmission UV (340nm)

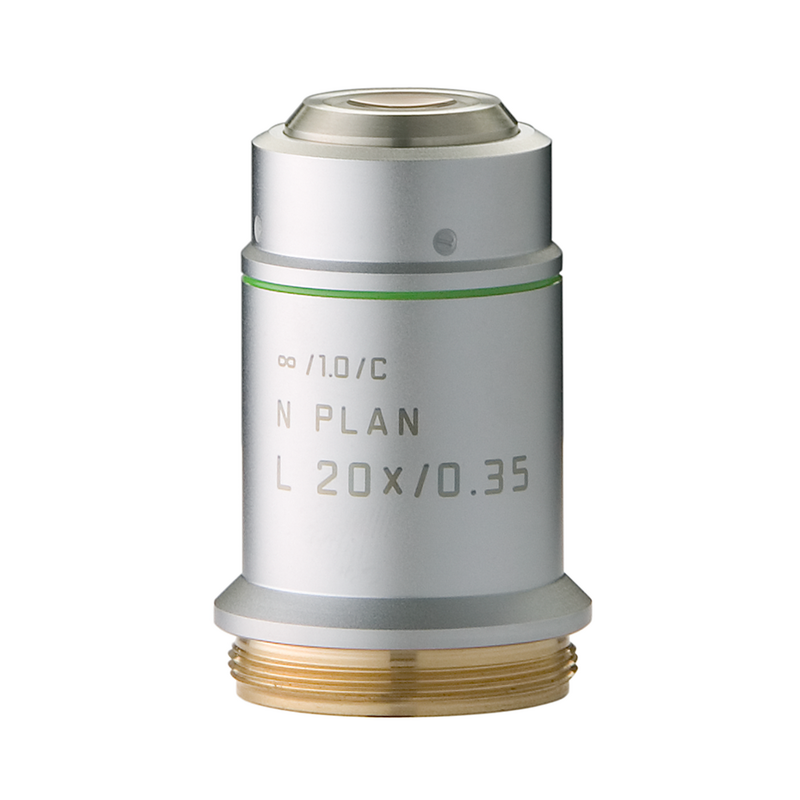

Figure

N PLAN L 20x/0,35

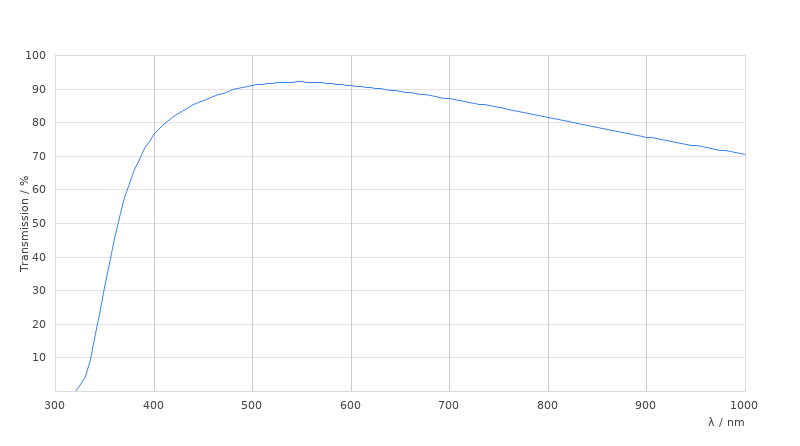

Transmission Curve

N PLAN L 20x/0,35

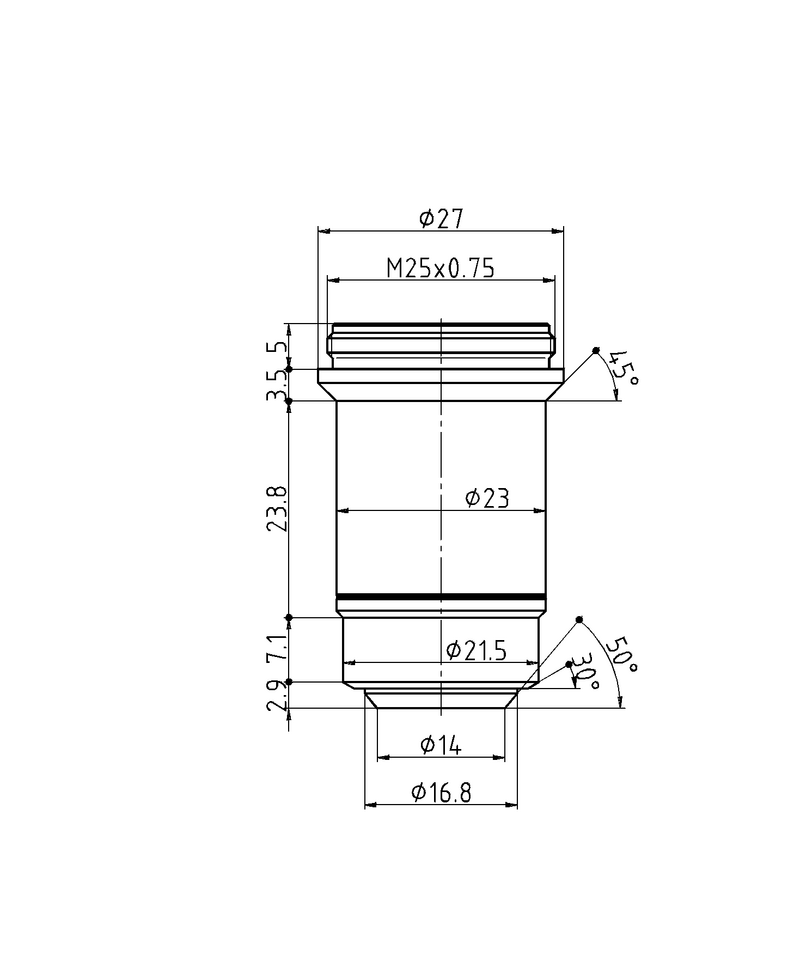

Dimension Sheet

N PLAN L 20x/0,35
