HI PLAN I 10x/0,22 PH1

Article Number 11506271
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 7.8
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DF, TL-PH, TL-IMC, FLUO
Numerical Aperture 0.22
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques PH1
Transmission -

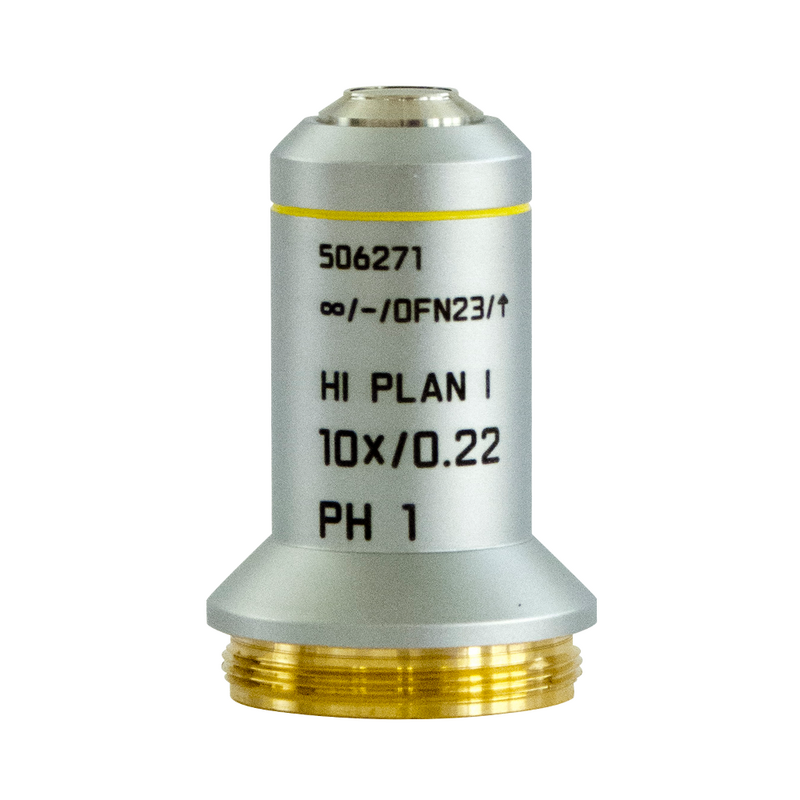

HI PLAN I 10x/0,22 PH1

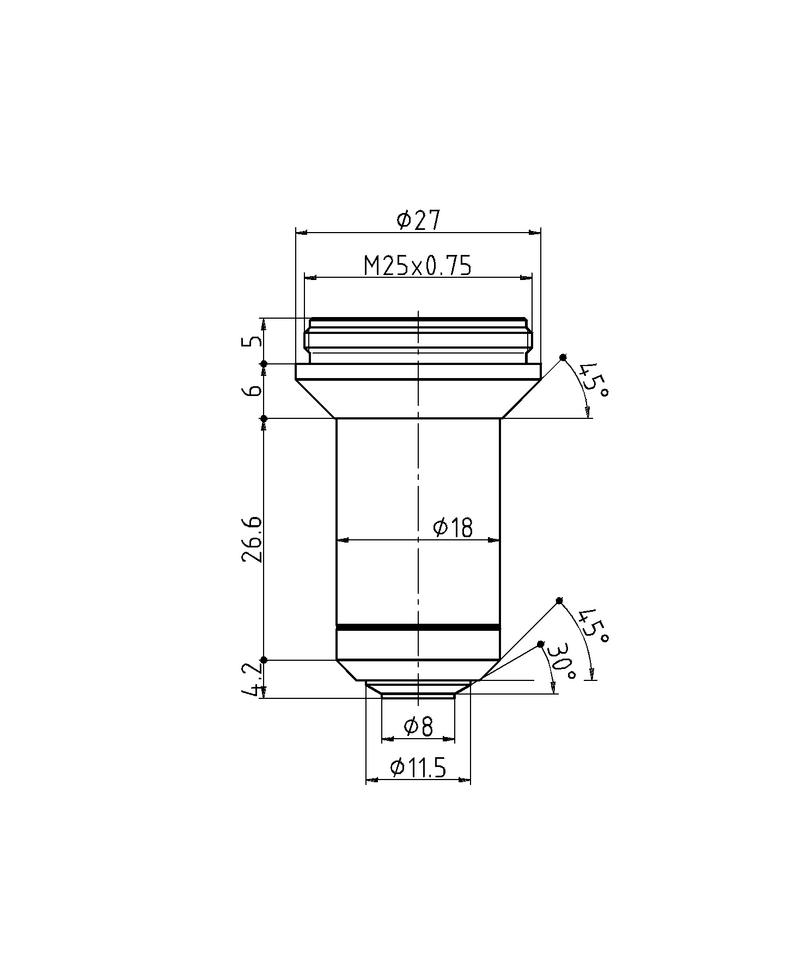

Dimension Sheet

HI PLAN I 10x/0,22 PH1
