HI PLAN I 40x/0,50 PH2

Article Number 11506273
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 2
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DF, TL-PH, FLUO
Numerical Aperture 0.5
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques PH2
Transmission -

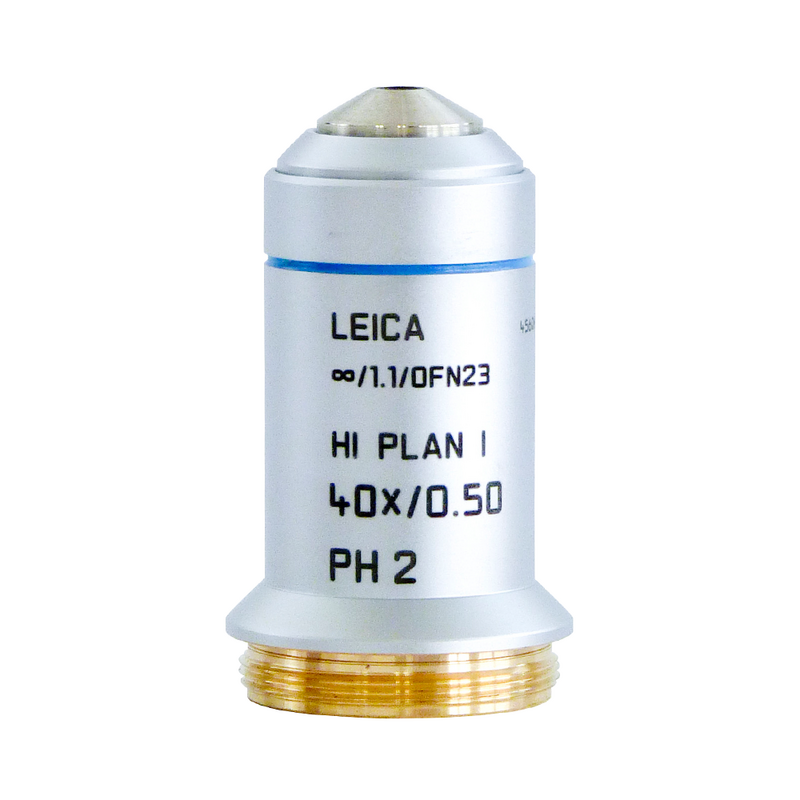

Figure

HI PLAN I 40x/0,50 PH2

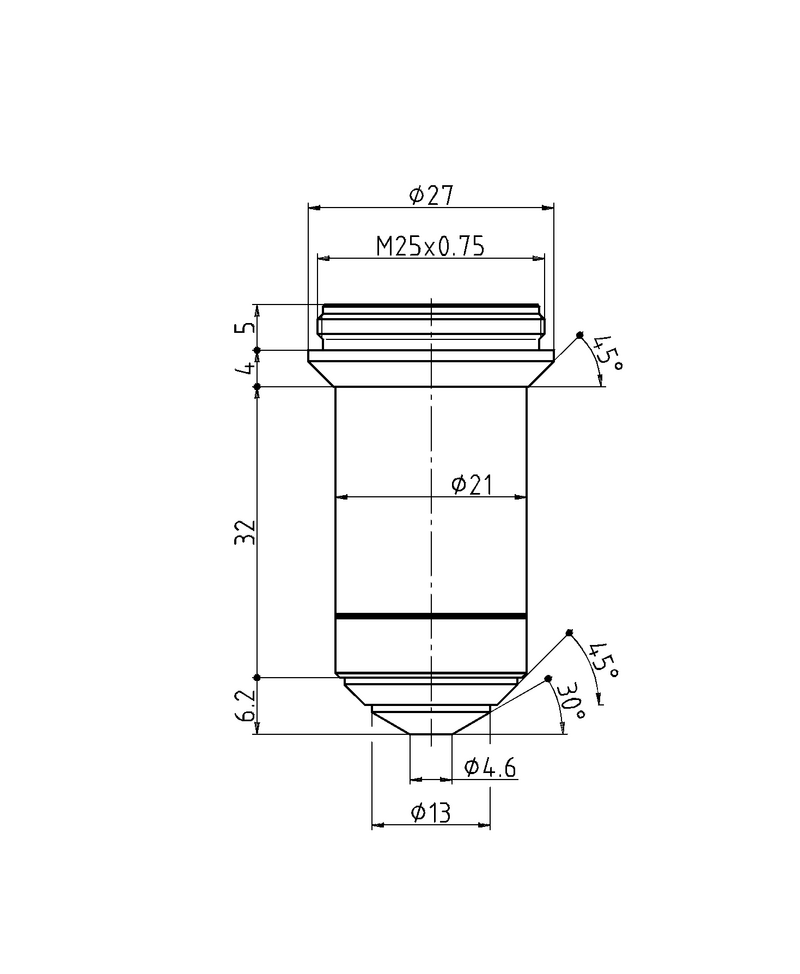

Dimension Sheet

HI PLAN I 40x/0,50 PH2
