HI PLAN 20x/0,40 SL

Article Number 11506277
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 20
Free Working Distance (WD in mm) 0.92
Immersion Dry
Iris Diaphragm Without
Magnification 20⨉
Contrasting Methodes TL-BF, TL-DF, FLUO
Numerical Aperture 0.4
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques SL
Transmission -

Figure

HI PLAN 20x/0,40 SL

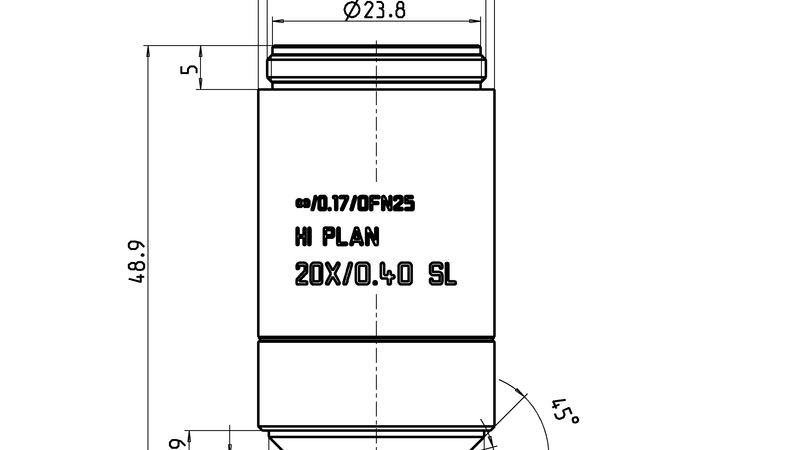

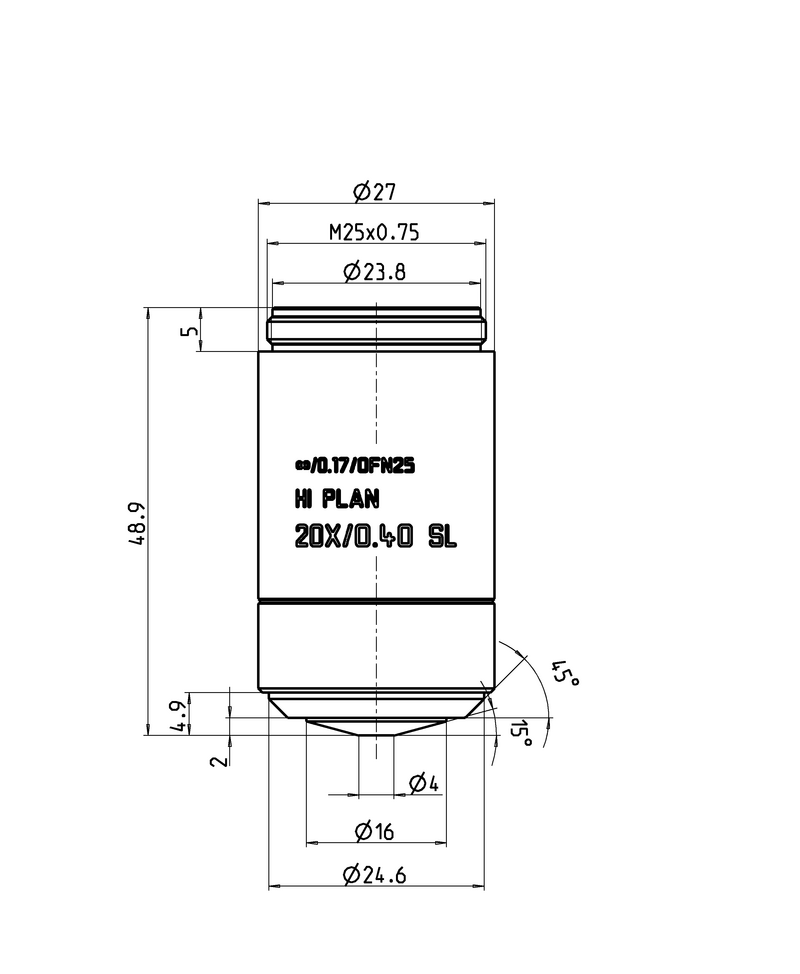

Dimension Sheet

HI PLAN 20x/0,40 SL
