Article Number 11506302
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism B
Field Number (FN) 22
Free Working Distance (WD in mm) 14.0
Immersion Dry
Iris Diaphragm Without
Magnification 5⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.12
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission -

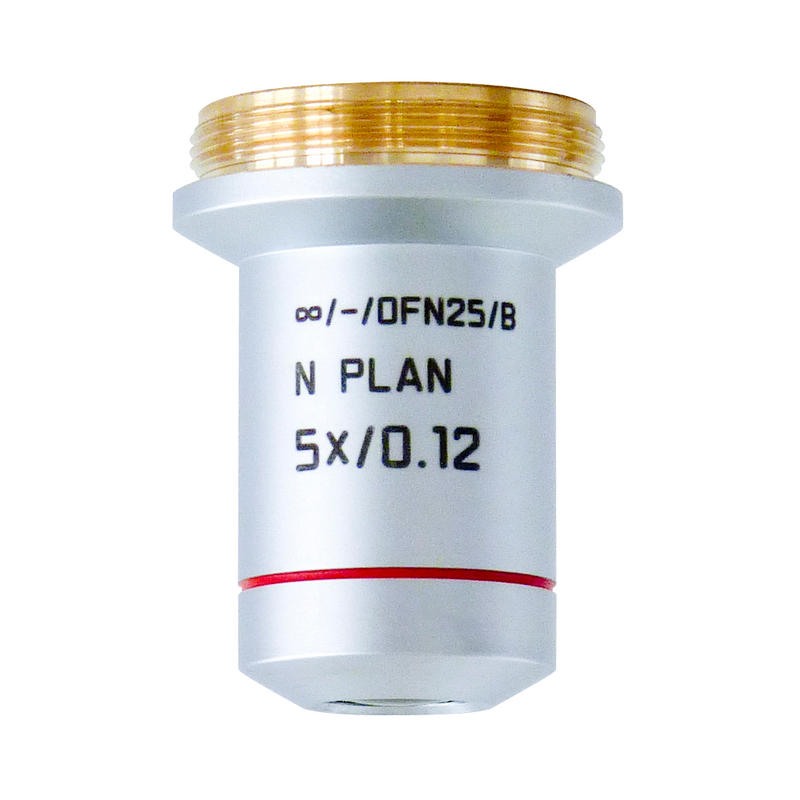

Figure

N PLAN 5x/0,12

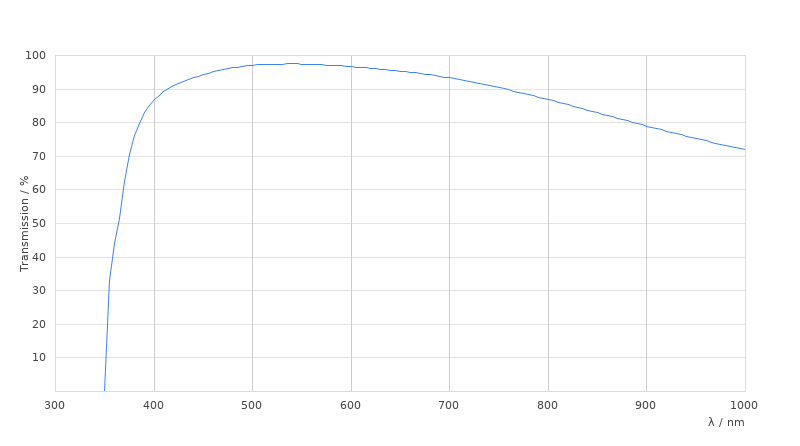

Transmission Curve

N PLAN 5x/0,12

Dimension Sheet

N PLAN 5x/0,12
