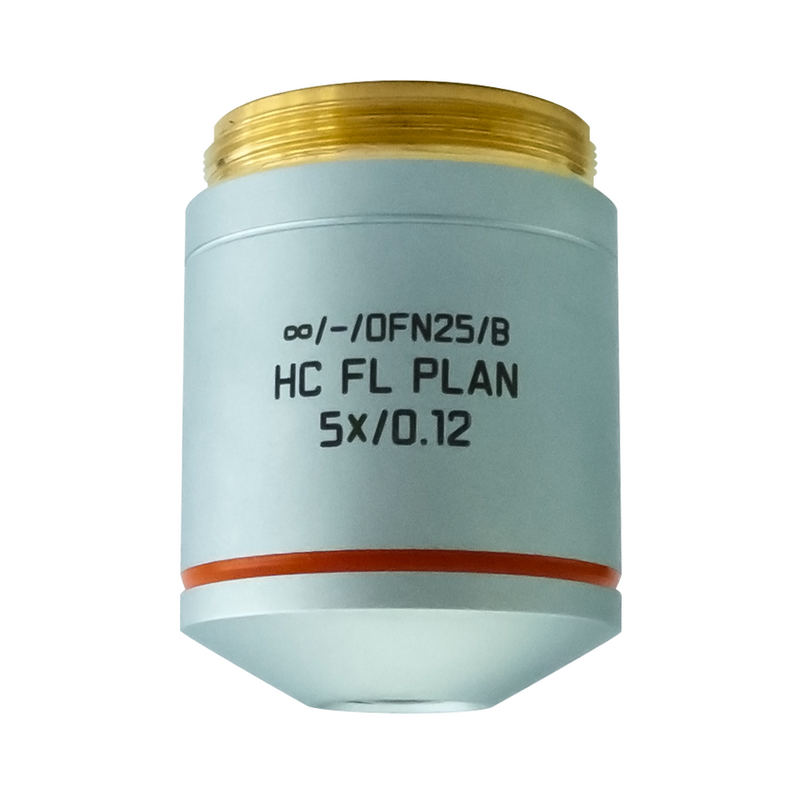

Microscope Objective HC FL PLAN 5x/0,12

Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
HC FL PLAN 5x/0,12
HC FL PLAN 5x/0,12
HC FL PLAN 5x/0,12
HC FL PLAN 5x/0,12
HC FL PLAN 5x/0,12
HC FL PLAN 5x/0,12

Technical Specs

Article Number 11506305
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism B
Field Number (FN) 25
Free Working Distance (WD in mm) 14.0
Immersion Dry
Iris Diaphragm Without
Magnification 5⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-IMC, FLUO
Numerical Aperture 0.12
Objective Thread M25
Objective Type FL PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques

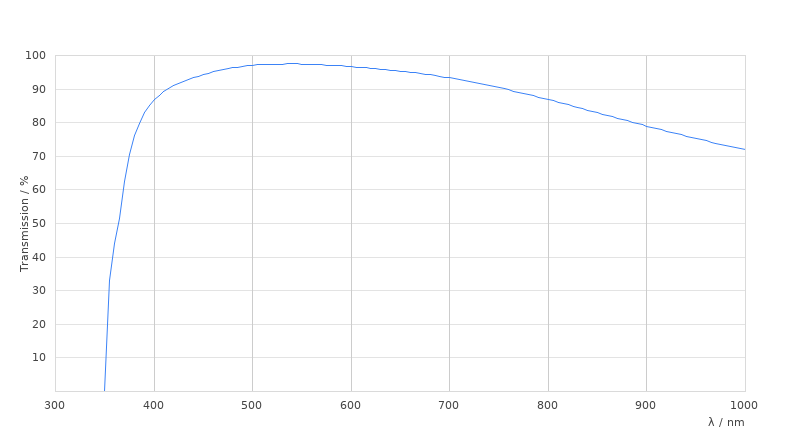

Transmission -
