HC FL PLAN 40x/0,65 PH2

Article Number 11506311
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.36
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, FLUO
Numerical Aperture 0.65
Objective Thread M25
Objective Type FL PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques PH2
Transmission -

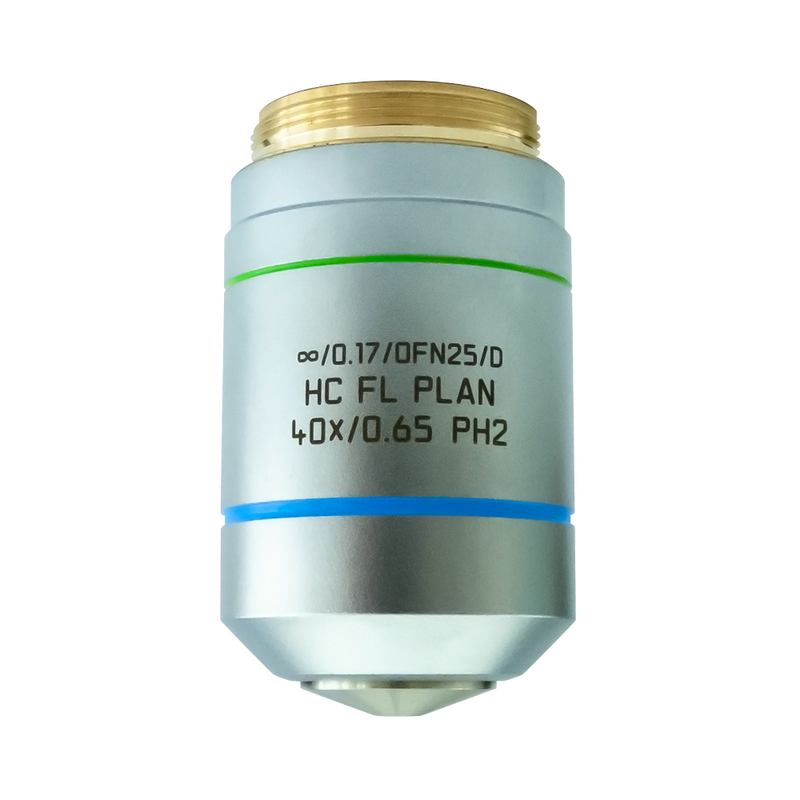

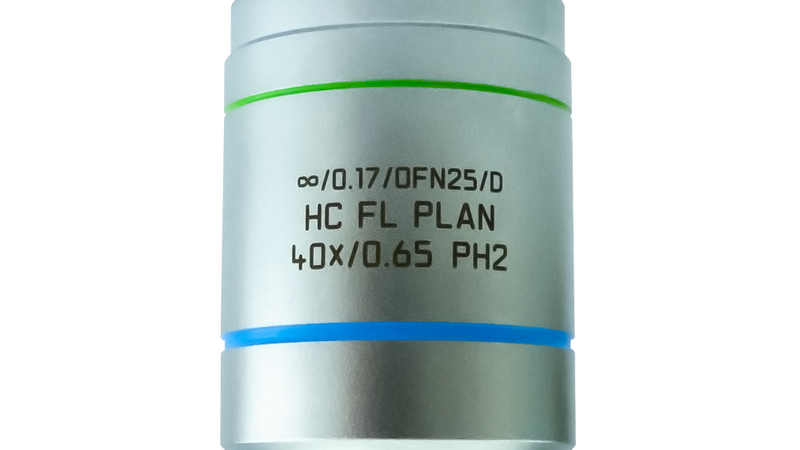

Figure

HC FL PLAN 40x/0,65 PH2

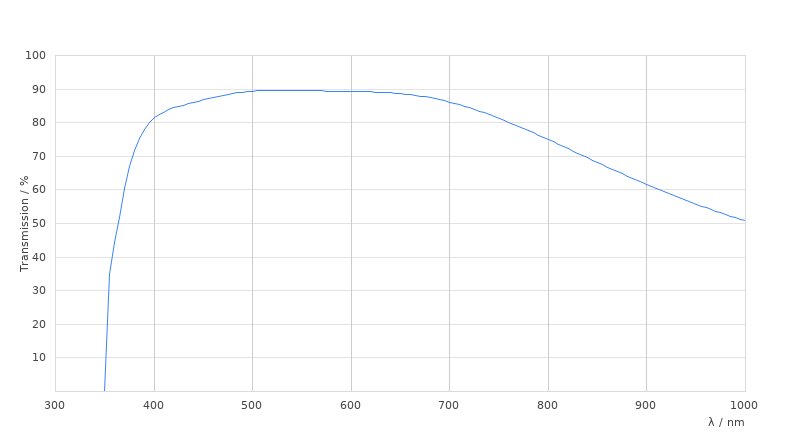

Transmission Curve

HC FL PLAN 40x/0,65 PH2

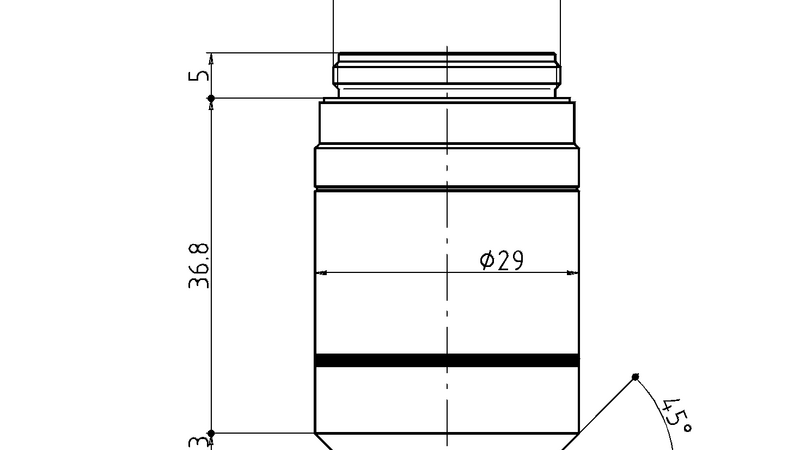

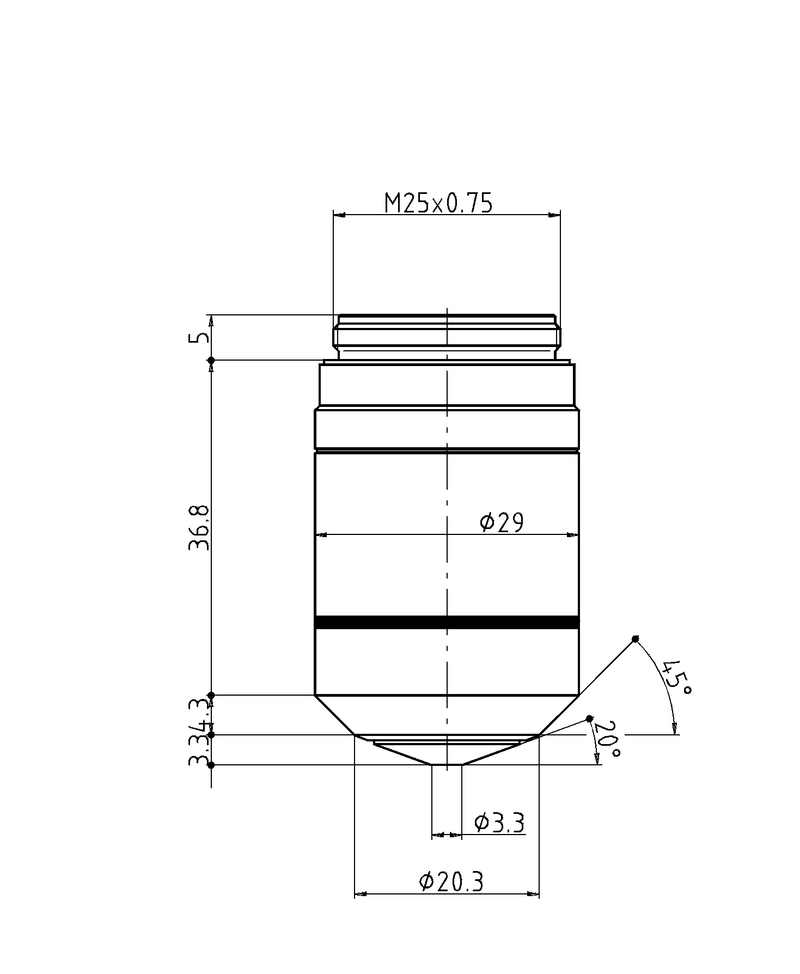

Dimension Sheet

HC FL PLAN 40x/0,65 PH2
