HC FL PLAN 100x/1,25 OIL

Article Number 11506312
Correction Ring (CORR) -
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.13
Immersion Oil
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, FLUO
Numerical Aperture 1.25
Objective Thread M25
Objective Type FL PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission UV (365nm)

Figure

HC FL PLAN 100x/1,25 OIL

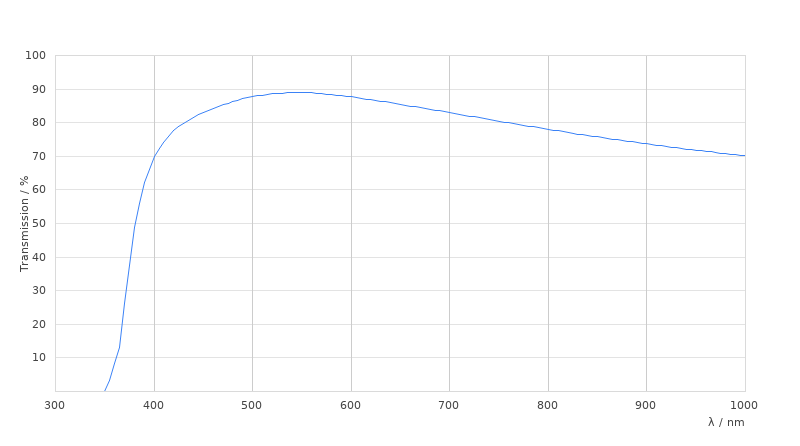

Transmission Curve

HC FL PLAN 100x/1,25 OIL

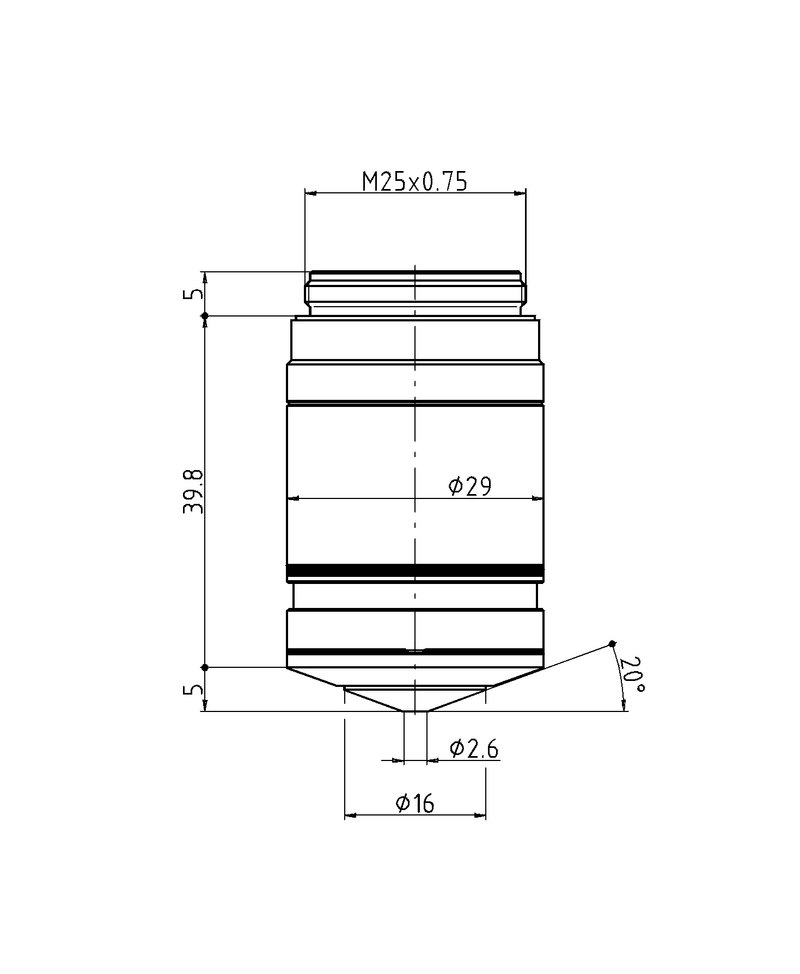

Dimension Sheet

HC FL PLAN 100x/1,25 OIL
