N PLAN 50x/0,90 OIL

Article Number 11506321
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 22
Free Working Distance (WD in mm) 0.14
Immersion Oil
Iris Diaphragm Without
Magnification 50⨉
Contrasting Methodes TL-BF, TL-P, FLUO
Numerical Aperture 0.9
Objective Thread M25
Objective Type N PLAN
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission UV (365nm)

Figure

N PLAN 50x/0,90 OIL

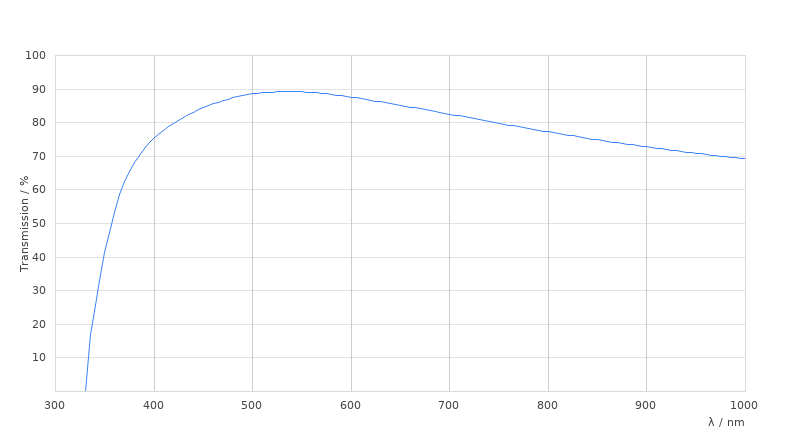

Transmission Curve

N PLAN 50x/0,90 OIL
