HC PL APO 86x/1,20 W motCORR STED white

Article Number 11506333
Correction Ring (CORR) motCORR
Coverglass With
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 0.3
Immersion Water
Iris Diaphragm Without
Magnification 86⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 1.2
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques CS2, MotCorr, MP, STED, Waterdispenser
Transmission UV (340nm)

Figure

HC PL APO 86x/1,20 W motCORR STED white

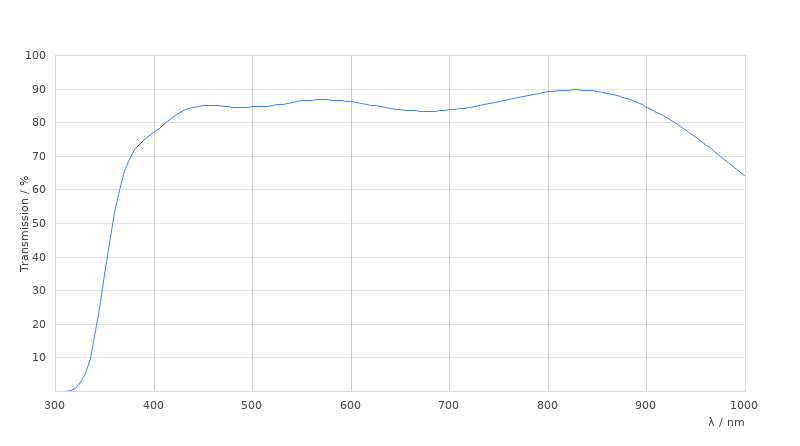

Transmission Curve

HC PL APO 86x/1,20 W motCORR STED white

Dimension Sheet

HC PL APO 86x/1,20 W motCORR STED white
