HC FLUOTAR L 25x/0,95 W VISIR

Article Number 11506374
Correction Ring (CORR) -
Coverglass Without
Exit Pupil Position/DIC prism D
Field Number (FN) 18
Free Working Distance (WD in mm) 2.5
Immersion Water
Iris Diaphragm Without
Magnification 25⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 0.95
Objective Thread M25
Objective Type HC FLUOTAR L VISIR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques Electrophysiology, MP
Transmission IR (up to 1300nm)

Figure

HC FLUOTAR L 25x/0,95 W VISIR

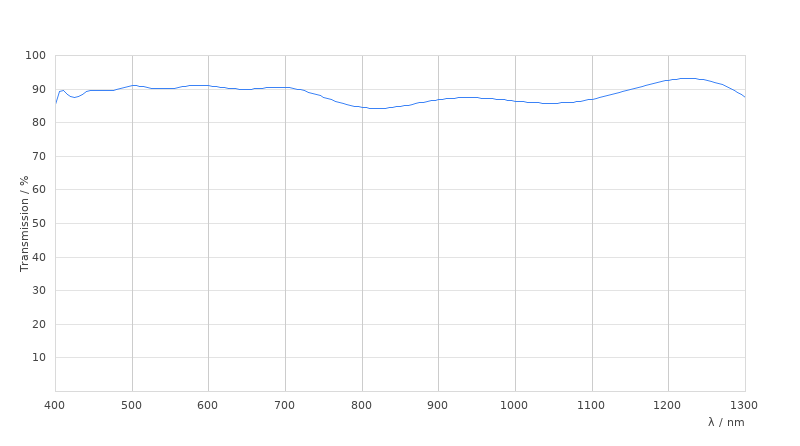

Transmission Curve

HC FLUOTAR L 25x/0,95 W VISIR

Dimension Sheet

HC FLUOTAR L 25x/0,95 W VISIR
