HC PL FLUOTAR L 100x/0,85 CORR

Article Number 11506379
Correction Ring (CORR) CORR
Coverglass With & without
Exit Pupil Position/DIC prism B
Field Number (FN) 25
Free Working Distance (WD in mm) 1.1
Immersion Dry
Iris Diaphragm Without
Magnification 100⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, FLUO
Numerical Aperture 0.85
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques
Transmission -

Figure

HC PL FLUOTAR L 100x/0,85 CORR

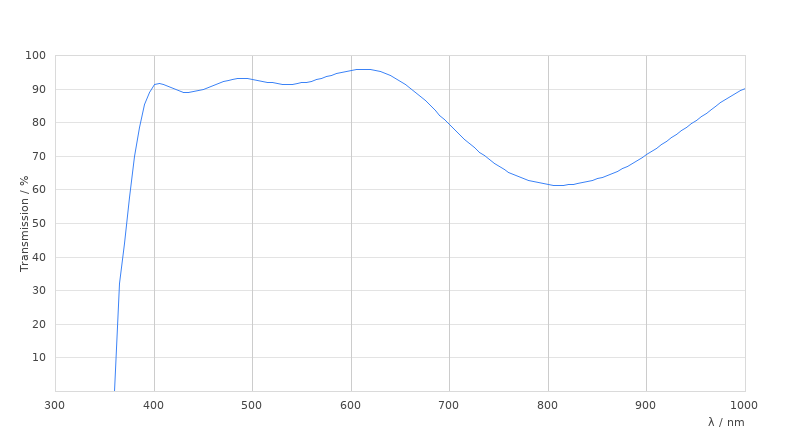

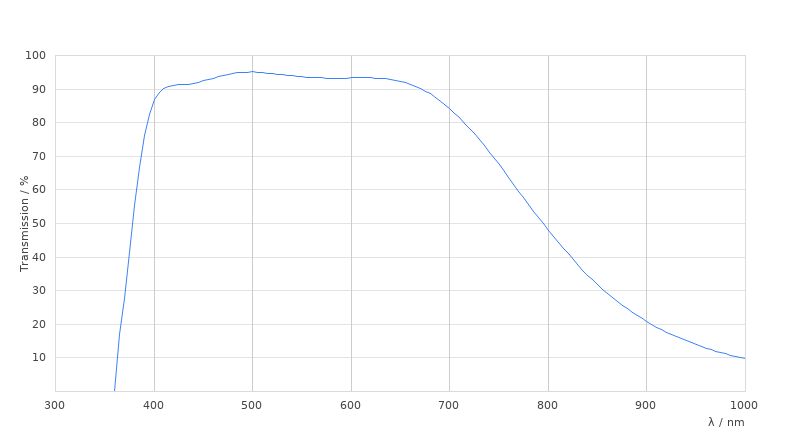

Transmission Curve

HC PL FLUOTAR L 100x/0,85 CORR

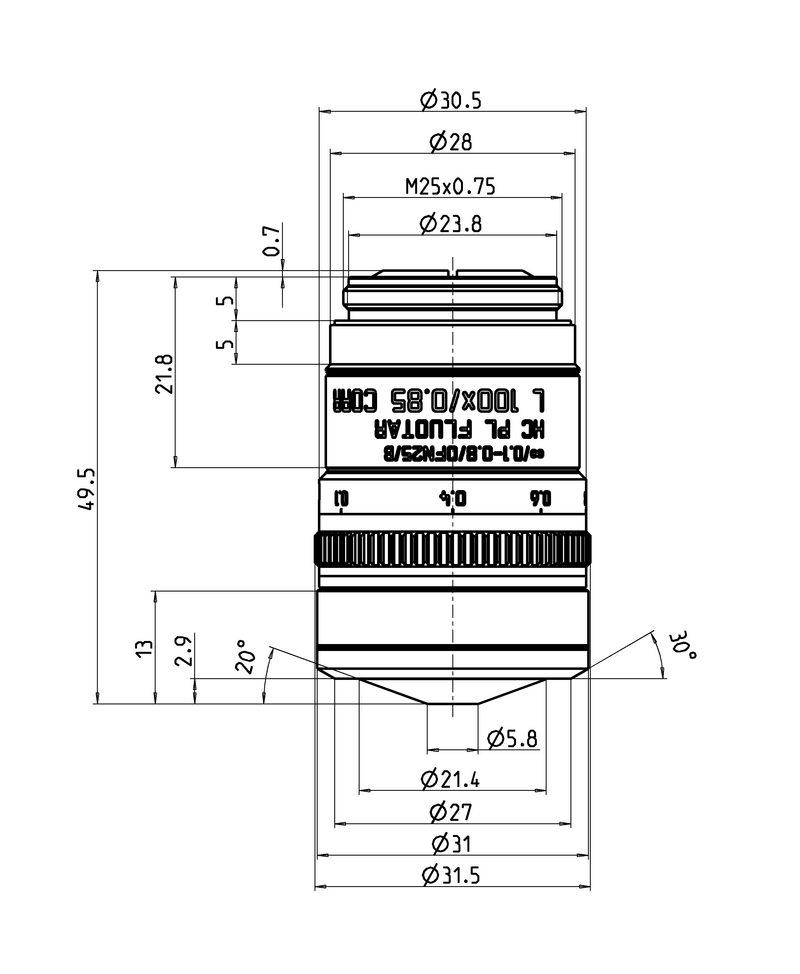

Dimension Sheet

HC PL FLUOTAR L 100x/0,85 CORR
