HC PL APO 40x/1,1 W CORR

Article Number 11506387
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism D
Field Number (FN) 25
Free Working Distance (WD in mm) 0.62
Immersion Water
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, FLUO
Numerical Aperture 1.1
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques Waterdispenser

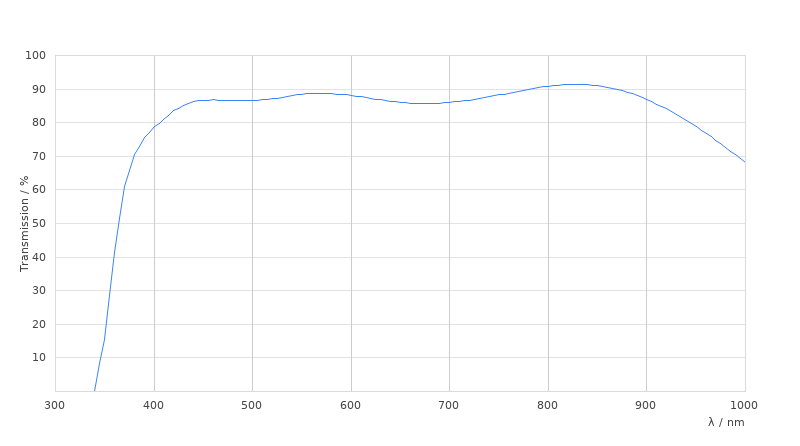

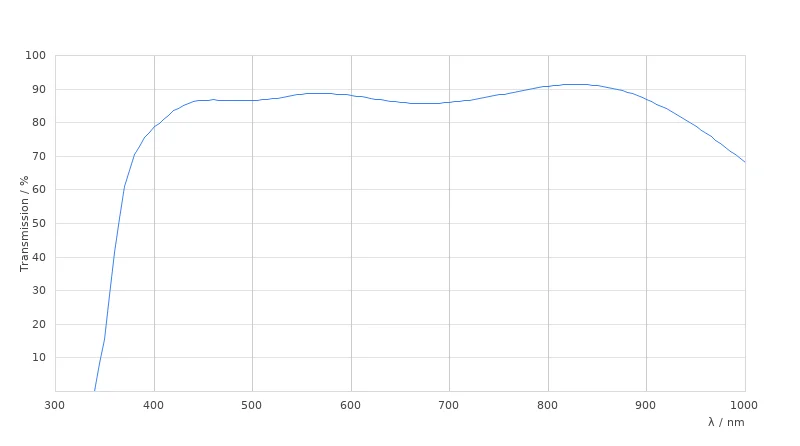

Transmission UV (365nm)


HC PL APO 40x/1,1 W CORR

Dimension Sheet

HC PL APO 40x/1,1 W CORR
