N PLAN 10x/0,25 PH1

Article Number 11506406
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism B
Field Number (FN) 25
Free Working Distance (WD in mm) 17.7
Immersion Dry
Iris Diaphragm Without
Magnification 10⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-DF, TL-PH, TL-IMC, FLUO
Numerical Aperture 0.25
Objective Thread M25
Objective Type N PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques PH1
Transmission UV (365nm)

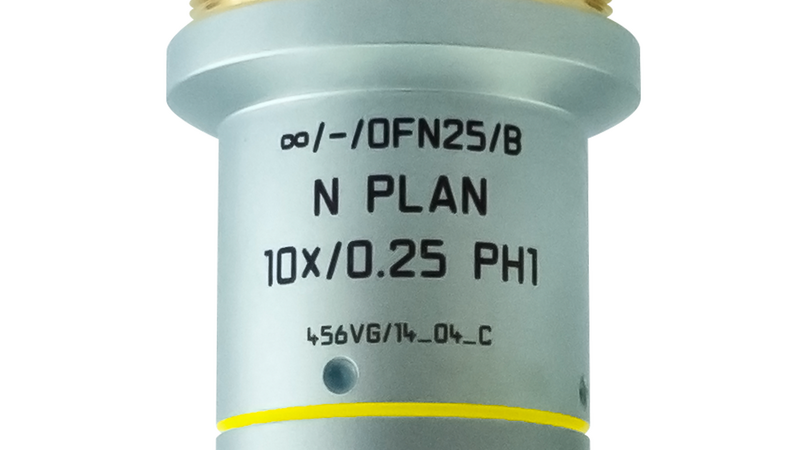

Figure

N PLAN 10x/0,25 PH1

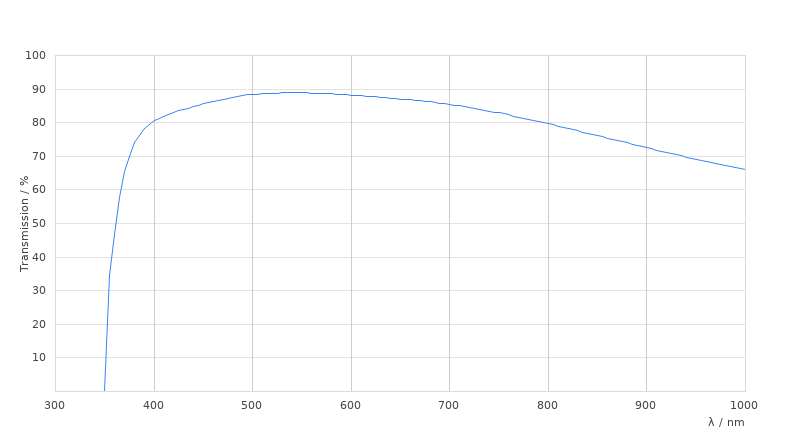

Transmission Curve

N PLAN 10x/0,25 PH1

Dimension Sheet

N PLAN 10x/0,25 PH1
