HI PLAN 4x/0,10 PH0

Article Number 11506408
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 25
Free Working Distance (WD in mm) 13.9
Immersion Dry
Iris Diaphragm Without
Magnification 4⨉
Contrasting Methodes TL-BF, TL-PH, FLUO
Numerical Aperture 0.1
Objective Thread M25
Objective Type HI PLAN
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques PH0
Transmission -

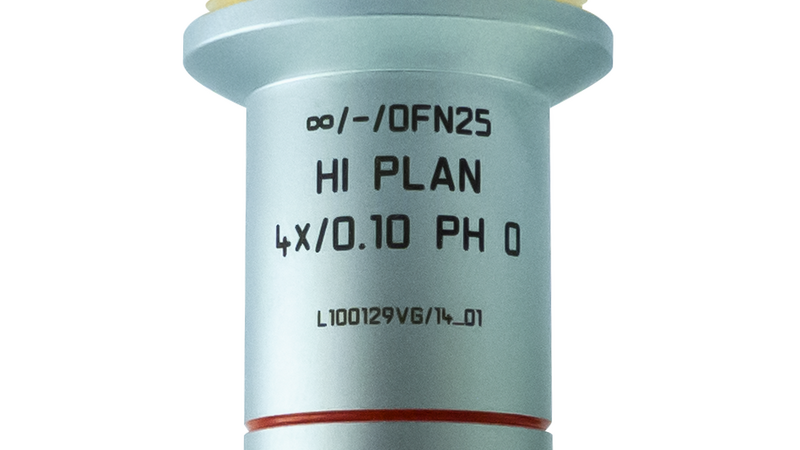

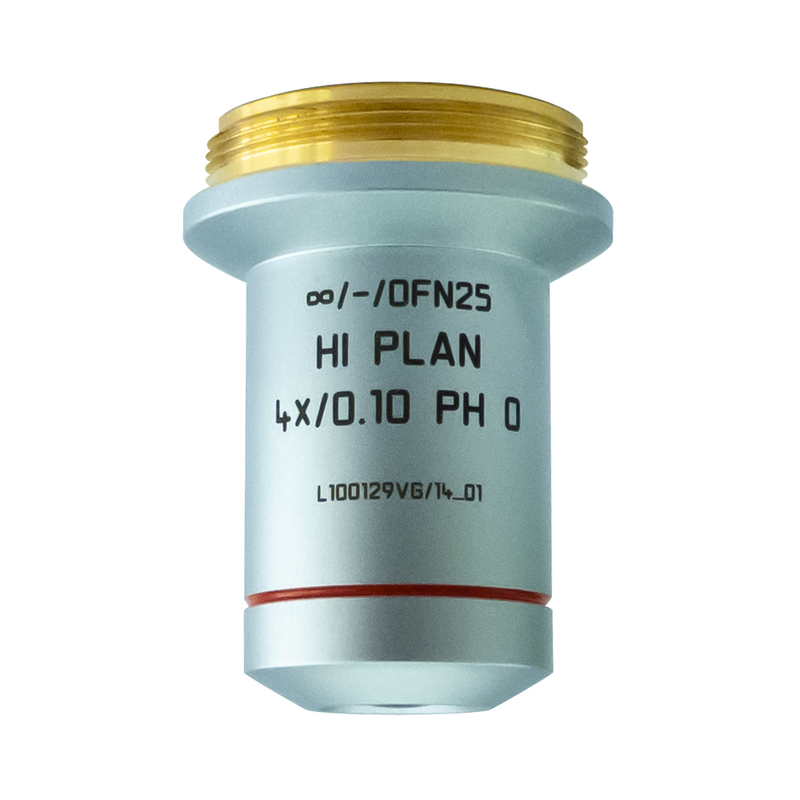

Figure

HI PLAN 4x/0,10 PH0

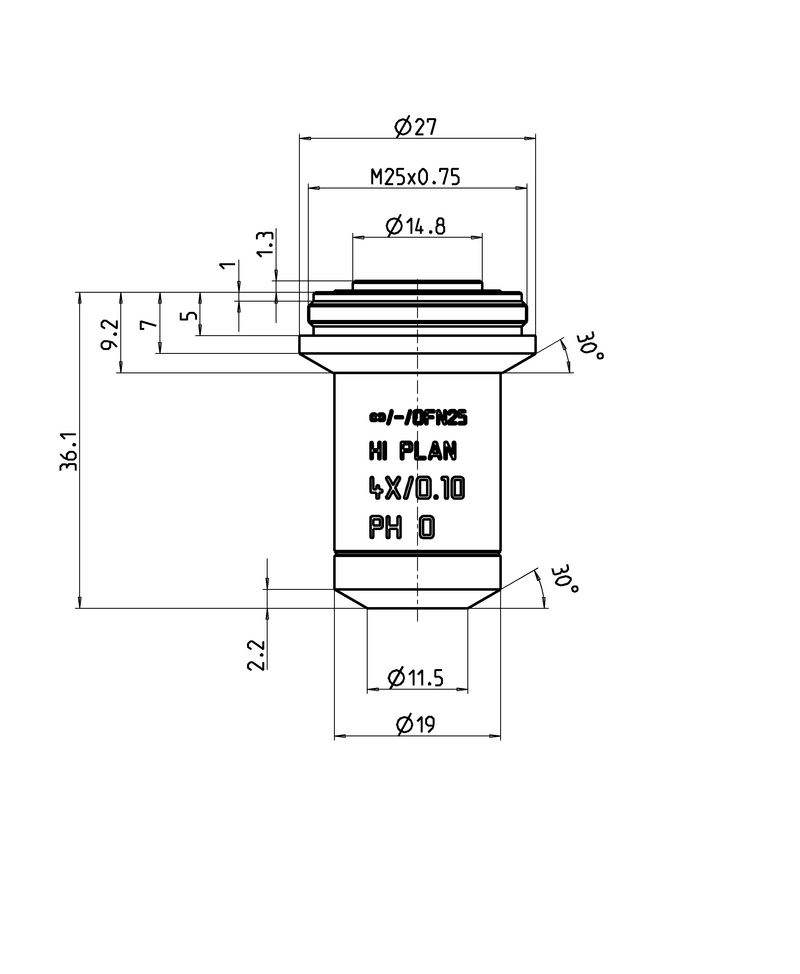

Dimension Sheet

HI PLAN 4x/0,10 PH0
