Article Number 11506409
Correction Ring (CORR) -
Coverglass With & without
Exit Pupil Position/DIC prism -
Field Number (FN) 16
Free Working Distance (WD in mm) 8.1
Immersion Dry
Iris Diaphragm Without
Magnification 1.6⨉
Contrasting Methodes TL-BF, FLUO
Numerical Aperture 0.05
Objective Thread M25
Objective Type -
Spring Loaded No
Suitable for AFC (Adaptive Focus Control) -
Techniques LightSheetIllumination
Transmission -

Figure

L 1,6x/0,05 DLS

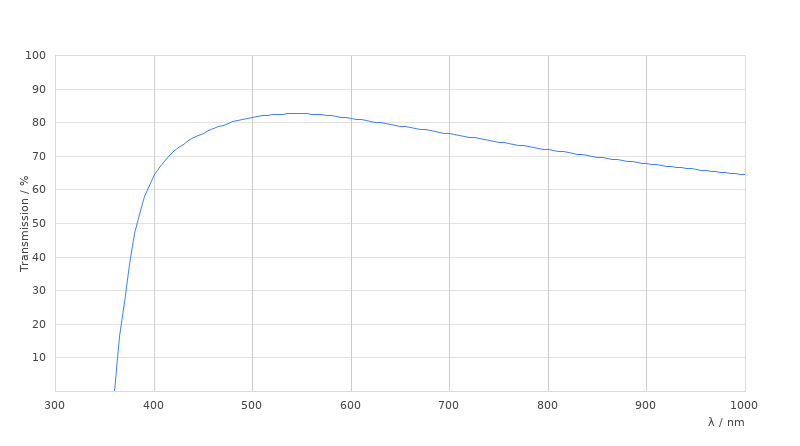

Transmission Curve

L 1,6x/0,05 DLS

Dimension Sheet

L 1,6x/0,05 DLS
