HC PL APO 40x/0,95 CORR PH2

Article Number 11506415
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism C
Field Number (FN) 25
Free Working Distance (WD in mm) 0.17
Immersion Dry
Iris Diaphragm Without
Magnification 40⨉
Contrasting Methodes TL-BF, TL-DIC, TL-PH, FLUO
Numerical Aperture 0.95
Objective Thread M25
Objective Type PLAN APO
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques PH2
Transmission UV (365nm)

Figure

HC PL APO 40x/0,95 CORR PH2

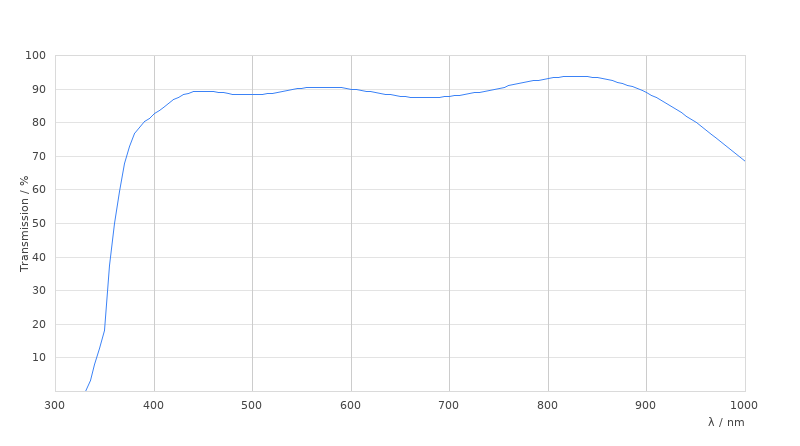

Transmission Curve

HC PL APO 40x/0,95 CORR PH2

Dimension Sheet

HC PL APO 40x/0,95 CORR PH2
