HC PL FLUOTAR 63x/1.10 IMM CORR PH3

Article Number 11506418
Correction Ring (CORR) CORR
Coverglass With
Exit Pupil Position/DIC prism E
Field Number (FN) 25
Free Working Distance (WD in mm) 0.35
Immersion IMM
Iris Diaphragm Without
Magnification 63⨉
Contrasting Methodes TL-BF, TL-DIC, TL-P, TL-PH, FLUO
Numerical Aperture 1.1
Objective Thread M25
Objective Type PL FLUOTAR
Spring Loaded Yes
Suitable for AFC (Adaptive Focus Control) AFC suitable
Techniques PH3
Transmission UV (340nm)

Figure

HC PL FLUOTAR 63x/1.10 IMM CORR PH3

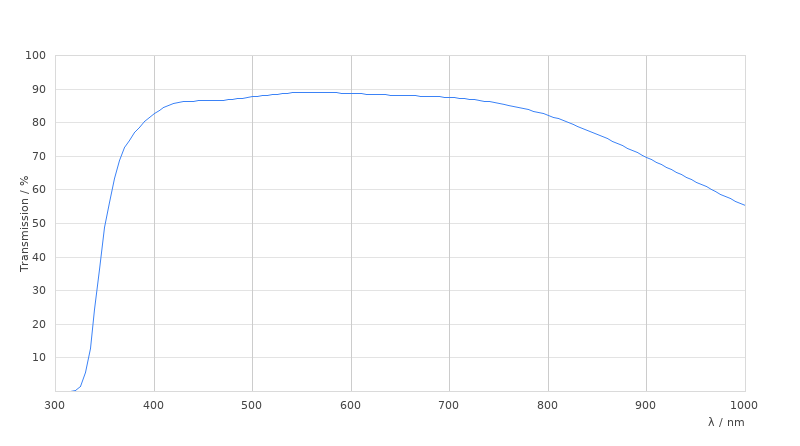

Transmission Curve

HC PL FLUOTAR 63x/1.10 IMM CORR PH3

Dimension Sheet

HC PL FLUOTAR 63x/1.10 IMM CORR PH3
