Microscope Objective HC PL APO 10x/0,40 CS2
Discover the perfect solution. Explore our Objective Finder, compare alternatives, and find the best fit for your needs.
Technical Specs
| Product Number | 11506424 |
|---|---|
| Correction Ring (CORR) | - |
| Coverglass | With |
| Exit Pupil Position/DIC prism | A |
| Field Number (FN) | 25 |
| Free Working Distance (WD in mm) | 2.56 |
| Immersion | Dry |
| Iris Diaphragm | Without |
| Magnification | 10⨉ |
| Contrasting Methodes | TL-BF, TL-DIC, TL-DF, FLUO |
| Numerical Aperture | 0.4 |
| Objective Thread | M25 |
| Objective Type | PLAN APO |
| Spring Loaded | No |
| Suitable for AFC (Adaptive Focus Control) | AFC suitable |
| Techniques | CS2 |

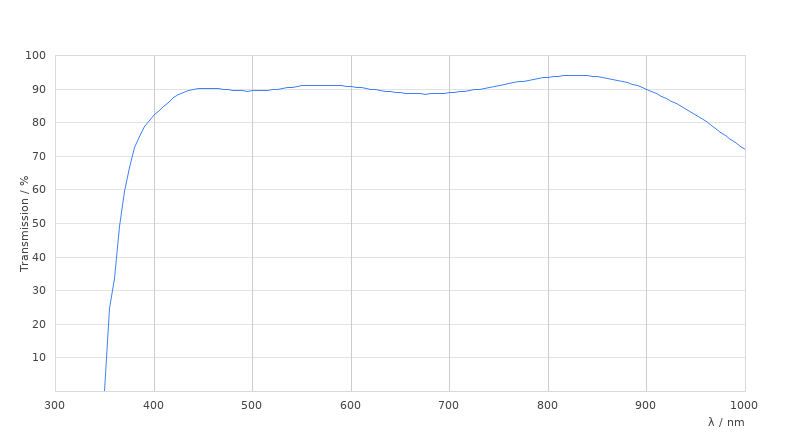

| Transmission | UV (365nm) |
